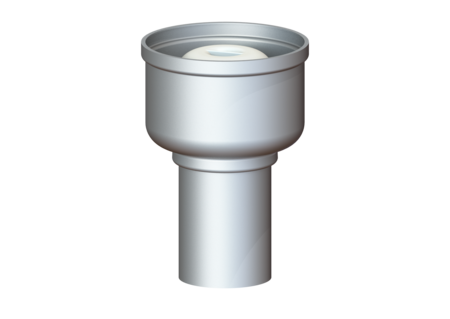

Ferrofix drain body
Sys 125, DN 70, Vertical outlet
![](https://assets.kessel.de/pb/640/pb_wgablau_54410_5843.png)
![](https://assets.kessel.de/mz/w640/mz_54410_384137.png)
KESSEL Ferrofix drain body, System 125, nominal size (DN) 70, socket vertical, waterproofing layer drain body by Connection flange, outside diameter (OD) 78 mm
- Made of particularly hygienic and mechanically highly resistant stainless steel
- Variably combinable with upper sections
Item no. | 54410 |
---|---|
GTIN | 4026092053638 |
Price group | 70 |
Ferrofix drain body Sys 125, DN 70, Vertical outlet
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Approval: Z-19.53-2414,Z-19.17-1719 ATEX: no Odour trap: included Dimensions Net weight: 1,06 kg Gross weight: 1,22 kg Length: 142 mm Width: 142 mm Height: 204 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical
Title | Item no. | ||
---|---|---|---|
![]() | Ferrofix upper section Sys 125, with conn. socket DN 50, L 15 | 48435 | Show |
![]() | Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 | 48907 | Show |
![]() | Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Show |
![]() | Variofix upper section Slotted grating, 304 SST, L 15 | 48965 | Show |
![]() | Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3 | 48977 | Show |
![]() | Upper section 125 150 x150 stainl.st. | 54910 | Show |
![]() | Clean out syst. 125, 150x150 stainl. st. | 54911 | Show |
![]() | Upper section System 125 stainl. steel | 54912 | Show |
![]() | Upper section System 125 stainl. steel | 54913 | Show |
![]() | Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm | 54914 | Show |
![]() | Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm | 54915 | Show |
![]() | Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm | 54916 | Show |
![]() | Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm | 54917 | Show |
![]() | Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm | 54919 | Show |
![]() | Upper section Syst. 125 ABS 150x150 | 54920 | Show |
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Fire protection insert Fire-Kit 100, for DN 50, 70, 80 | 48099 | Show |
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
![]() | Quick-Fit pipe penetration seal for core drillholes with fire protection | 48990 | Show |
![]() | Quick-Fit pipe penetration seal for core drillholes, w/o fire protection | 48991 | Show |
![]() | Extension section System 125, with pressure sealing flange | 54187 | Show |
![]() | Extension section System 125, side inlet DN 50/40 | 54189 | Show |
![]() | Extension section System 125, 304 stainless steel | 54900 | Show |
![]() | Extension section System 125, with glued flange | 54901 | Show |
![]() | Extension section System 125, Side inlet DN 50 | 54902 | Show |
![]() | Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
Manuals | |
---|---|
CAD Data | |
Approval | |
Test Reports and Certificates |
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- TÜV test mark (pruefzeichen):
ID 1111244461
- Socket version (stutzen_ausfuehrung):
vertical
- Odour trap (geruchsverschluss): included
