Upper section

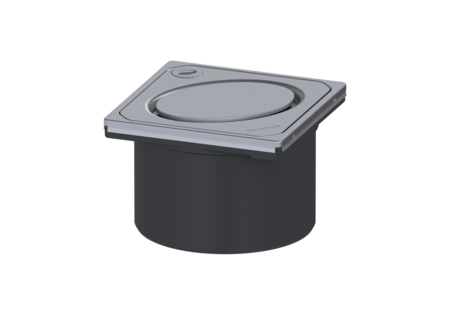

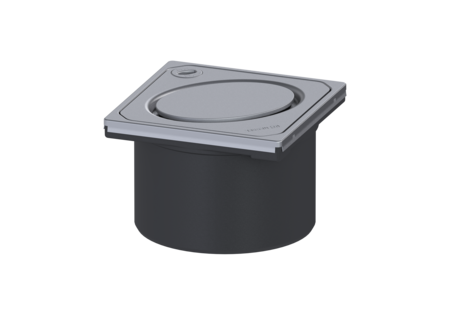

Oval des cover, 316SST, Lock&Lift, L15
KESSEL Upper section, volume 4,9 dm³, length 132 mm, width 132 mm, type of cover Design cover, locking Lock & Lift, design cover Oval, Cover 316 stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 48227 |
|---|---|
| GTIN | 4026092077917 |
| Price group | 10 |
Upper section Oval des cover, 316SST, Lock&Lift, L15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics ATEX: no Dimensions Net weight: 0,73 kg Gross weight: 0,73 kg Height: 90 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Design cover Cover material: 316 stainless steel Colour of cover: silver Height of cover: 16 mm Frame material: 316 stainless steel Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Oval Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
316 stainless steel
- Frame material (rahmen_material):
316 stainless steel
- Upper section material (material_aufsatzstueck):
ABS
