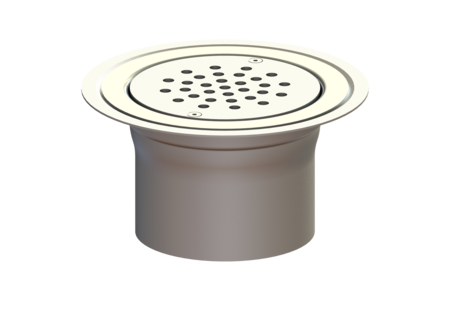

Ferrofix upper section
Sys 125, for PVC, Hole patt cover, L 15
![](https://assets.kessel.de/pb/640/pb_wgablau_59192_202598.png)
KESSEL Ferrofix upper section, length 169 mm, width 169 mm, type of cover Round hole pattern cover, locking screwed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
Item no. | 59192 |
---|---|
GTIN | 4026092079898 |
Price group | 70 |
Ferrofix upper section Sys 125, for PVC, Hole patt cover, L 15
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 General characteristics ATEX: no Dimensions Net weight: 1,34 kg Gross weight: 2 kg Height: 102 mm Packaging dimension: length: 1264 mm Packaging dimension: width: 254 mm Packaging dimension: height: 136 mm Coverage features Type of cover: Round hole pattern cover Cover material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Rim width: 169 mm Rim length: 169 mm Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
