Ferrofix upper section
Sys 125, Ladd grt, Class D

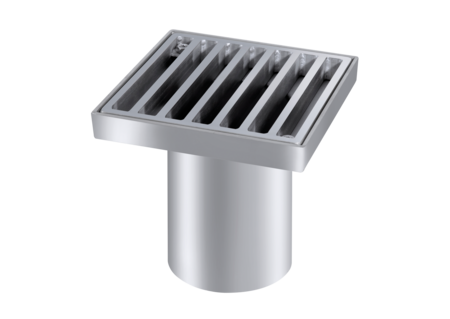

KESSEL Ferrofix upper section, length 202 mm, width 202 mm, type of cover Ladder grating, locking screwed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by Connection flange
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
Item no. | 59400 |
---|---|
GTIN | 4026092096741 |
Price group | 70 |
Ferrofix upper section Sys 125, Ladd grt, Class D
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Connection flange General characteristics ATEX: no Dimensions Net weight: 4 kg Gross weight: 4,3 kg Height: 200 mm Packaging dimension: length: 1264 mm Packaging dimension: width: 254 mm Packaging dimension: height: 136 mm Coverage features Type of cover: Ladder grating Cover material: Stainless steel 14301 Height of cover: 30 mm Locking: screwed Load class: D 400 (EN 124) Rim width: 202 mm Rim length: 202 mm Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): Stainless steel 14301
