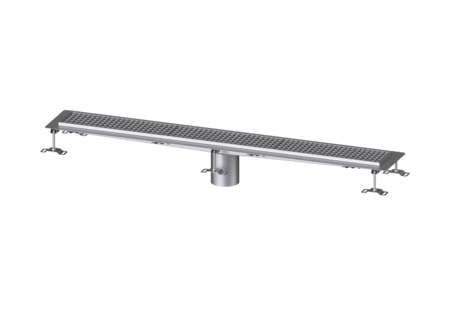

Box channel Ferrofix

glued flange H: 15mm, 156x1514mm

6015150
6015150

KESSEL Box channel Ferrofix, nominal size (DN) 125, Glued flange height 15 mm, length 1514 mm, width 156 mm, type of cover Slotted cover, upper section material Stainless steel 14301, outside diameter (OD) 125 mm

  • Made of particularly a hygienic and mechanically highly resistant stainless steel
  • Variably combinable with suitable drain bodies
Item no. 6015150
GTIN 4026092054659
Price group 80

    Box channel Ferrofix glued flange H: 15mm, 156x1514mm
    The Ferrofix box channel made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for joint sealing and has a circumferential adhesive edge (15 mm deep and 50 mm folded outwards) with welded mitres. The glued flange is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 15 mm ATEX: no Dimensions Net weight: 9 kg Gross weight: 9 kg Length: 1514 mm Width: 156 mm Height: 60 mm Packaging dimension: length: 1760 mm Packaging dimension: width: 330 mm Packaging dimension: height: 350 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
    48636 Sludge bucket d: 122 mm, SST 48636 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 125
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): Slotted cover
    • Length (laenge): 1,514  mm
    • Width (breite): 156  mm
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • (oberflaeche):
