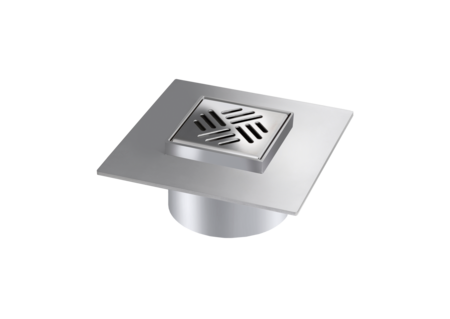

Ferrofix upper section
Sys 125, Gl fl., Slot cover, 100x100 mm
![](https://assets.kessel.de/pb/640/pb_yy_59165_7347.png)
KESSEL Ferrofix upper section, surface, length 100 mm, width 100 mm, type of cover Slotted cover, locking unlocked, design cover, Cover Stainless steel 14301
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
Item no. | 59165 |
---|---|
GTIN | 4026092103593 |
Price group | 70 |
Ferrofix upper section Sys 125, Gl fl., Slot cover, 100x100 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics ATEX: no Dimensions Net weight: 2 kg Gross weight: 2,2 kg Length: 200 mm Width: 200 mm Height: 90 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: unlocked Load class: K 3 (EN 1253-1) Rim width: 100 mm Rim length: 100 mm Shape of upper section: square Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
