Ferrofix upper section
Sys 125, glue fl, Hole pat cover, K3
![](https://assets.kessel.de/pb/640/pb_wgablau_59010_373271.png)
![](https://assets.kessel.de/mz/w640/mz_59010_373269.png)

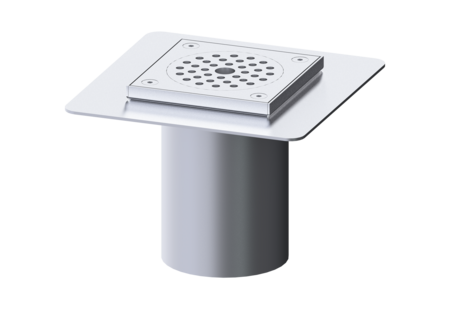

KESSEL Ferrofix upper section, surface, length 148 mm, width 148 mm, type of cover Hole pattern cover, locking screwed, design cover, Cover Stainless steel 14301
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
Item no. | 59010 |
---|---|
GTIN | 4026092103456 |
Price group | 70 |
Ferrofix upper section Sys 125, glue fl, Hole pat cover, K3
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 3 kg Gross weight: 3,1 kg Length: 246 mm Width: 246 mm Height: 150 mm Packaging dimension: length: 246 mm Packaging dimension: width: 246 mm Packaging dimension: height: 150 mm Coverage features Type of cover: Hole pattern cover Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 148 mm Rim length: 148 mm Shape of upper section: square Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Manuals | |
---|---|
CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
