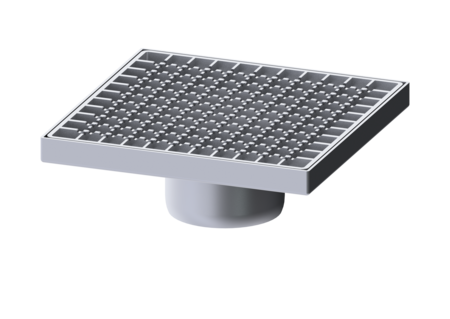

Ferrofix upper section
w/o glue flange, 300x300mm, slot grat.
KESSEL Ferrofix upper section, type of cover Slotted cover, shape of upper section square, locking placed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by Connection flange
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 54926 |
|---|---|
| GTIN | 4026092099919 |
| Price group | 70 |
Ferrofix upper section w/o glue flange, 300x300mm, slot grat.
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Connection flange General characteristics Standard: EN 1253-1 Dimensions Net weight: 6,32 kg Gross weight: 6,67 kg Length: 300 mm Width: 300 mm Height: 110 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 25 mm Surface: pickled Locking: placed Load class: L 15 / M 125 (EN 1253-1) Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
