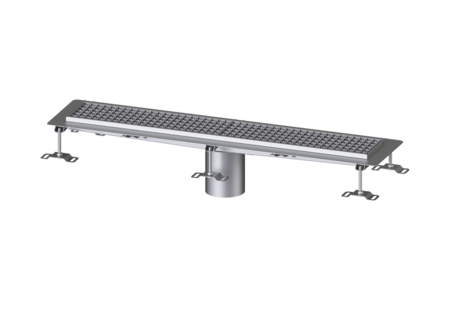

Box channel Ferrofix
glued flange H: 15mm, 153x1011mm
KESSEL Box channel Ferrofix, nominal size (DN) 125, Glued flange height 15 mm, length 1011 mm, width 153 mm, type of cover Slotted cover, upper section material Stainless steel 14301, outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6015100 |
|---|---|
| GTIN | 4026092054642 |
| Price group | 80 |
Box channel Ferrofix glued flange H: 15mm, 153x1011mm
The Ferrofix box channel made of stainless steel with a material thickness of 2.0 mm (pickled in the immersion bath) is equipped with polished visible ridges, longitudinal and transverse slopes, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for joint sealing and has a circumferential adhesive edge (15 mm deep and 50 mm folded outwards) with welded mitres. The glued flange is suitable for connecting waterproofing layers in accordance with DIN 18534, for all waterproofing classes. Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Glued flange height: 15 mm General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 15 mm Dimensions Net weight: 7 kg Gross weight: 7 kg Length: 1011 mm Width: 153 mm Height: 60 mm Packaging dimension: length: 1120 mm Packaging dimension: width: 400 mm Packaging dimension: height: 270 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 1,011 mm
- Width (breite): 153 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
