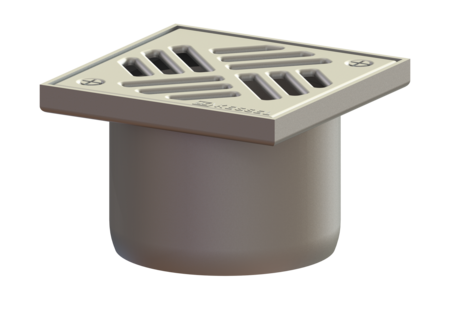

Ferrofix upper section
Sys 125, Slot cover, 146 x 146 mm, K3
KESSEL Ferrofix upper section, length 146 mm, width 146 mm, type of cover Slotted cover, shape of upper section square, locking screwed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by Connection flange
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 48977 |
|---|---|
| GTIN | 4026092004630 |
| Price group | 70 |
Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Connection flange General characteristics ATEX: no Dimensions Net weight: 1,18 kg Gross weight: 1,28 kg Height: 100 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 17 mm Surface: Polished SST Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 146 mm Rim length: 146 mm Shape of upper section: square Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
