Ferrofix upper section

Sys 125, Slotted grating, 200 x 200 mm

54916
Back to table of variants PDF product data sheet

KESSEL Ferrofix upper section, length 200 mm, width 200 mm, type of cover Slotted cover, shape of upper section square, locking unlocked, design cover, Cover Stainless steel 14301, waterproofing layer upper section by Connection flange

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54916
GTIN 4026092072455
Price group 70

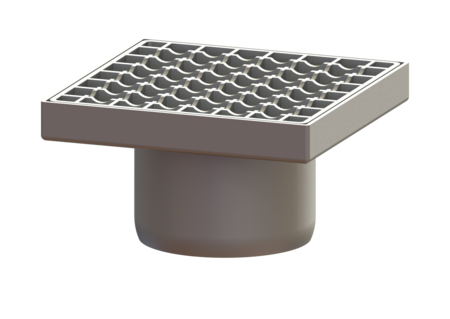

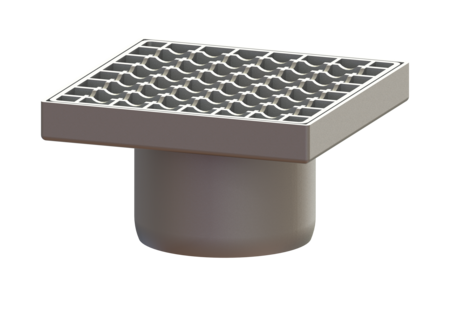

    Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Connection flange General characteristics Standard: EN 1253-1 Dimensions Net weight: 1,92 kg Gross weight: 2,02 kg Height: 100 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 28 mm Surface: pickled Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
