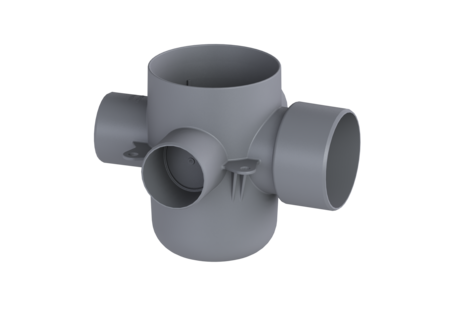

Bathroom drain body ME
with 3 horizontal inlets OD 55 mm
KESSEL Bathroom drain body ME, inlet nominal size (DA 55 mm, 3 inlets, drainage by Point drain, design cover
- for glued bonds
- Connections according to BS5255
- optional for DIN1253
| Item no. | 373001 |
|---|---|
| GTIN | 4026092048580 |
| Price group | 10 |
Bathroom drain body ME with 3 horizontal inlets OD 55 mm
The drain body for ME bathroom drains is made of polymer and is equipped with a removable odour trap. It has three optional inlets and one outlet to British standard. Variant Waterproofing layer on the drain body: Connection flange Sealing water height: 75 mm Discharge rate (l/s) with 20 mm threshold: 1,8 General characteristics Outer diameter (OD): 55 mm Odour trap: included Dimensions Net weight: 0,2 kg Gross weight: 0,2 kg Length: 219 mm Width: 200 mm Height: 168 mm Packaging dimension: length: 219 mm Packaging dimension: width: 200 mm Packaging dimension: height: 168 mm Tank/drain body Inlet nominal size (OD): 55 mm Number of inlets: 3 Material of drain body: ABS Socket version: lateral
| Title | Item no. | ||
|---|---|---|---|
 | Upper section System 100, Slotted cover, 304 SST, K 3 | 27165 | Show |
 | Upper section System 100, Slotted cover, anti-slip | 27176 | Show |
 | Upper section System 100, Slotted cover, white, K 3 | 27192 | Show |
 | Upper section System 100, Slotted cover, K3 | 27196 | Show |
 | Upper section with cover plate 150x150mm | 27196G | Show |
 | Upper section Sys100, Kessel des cover, 304SST, L15 | 27201 | Show |
 | Upper section Sys 100, Oval des cover, 304 SST, L 15 | 27202 | Show |
 | Upper section System 100, tileable, Polymer, K 3 | 27210 | Show |
 | Upper section System 100, tileable, 304 SST, K 3 | 27211 | Show |
 | Upper section System 100, Slot design cover, K 3 | 27218 | Show |
 | Upper section System 100, Slot design cover, Lock&Lift | 27219 | Show |
 | Upper section System 100, Spot design cover, K 3 | 27220 | Show |
 | Upper section System 100, Spot design cover, Lock&Lift | 27221 | Show |
 | Upper section System 100, Kessel design cover, L 15 | 27225 | Show |
 | Upper section Sys 100, Design Oval, Lock&Lift | 27226 | Show |
 | Variofix upper section System 100, Slotted cover, 304 SST, K 3 | 47901 | Show |
 | Variofix upper section System 100, Slotted cover, 304 SST, L 15 | 47902 | Show |
 | Variofix upper section Sys100, Kessel des cover, 304 SST, L 15 | 47904 | Show |
 | Variofix upper section Sys100, Oval ded cover, 304 SST, L 15 | 47905 | Show |
 | Variofix upper section System 100, tileable, 304 SST, K 3 | 47906 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section System 100, H: 161 mm | 27146 | Show |
 | Sludge bucket d: 110 mm | 27168 | Show |
 | Extension section System 100, with pressure sealing flange | 27198 | Show |
 | Extension section System 100, with glued flange | 27199 | Show |
 | Adapter set for gluing, ME floor drain | 373007 | Show |
 | Adapter set for push-fit, ME floor drain | 373008 | Show |
 | Odour trap Multistop, System 100 | 43500 | Show |
 | Hair filter Polymer, for System 100 bathroom drains | 43700 | Show |
 | Membrane 500 x 500 mm | 43710 | Show |
 | Membrane EPDM, 500 x 500 mm | 43730 | Show |
 | Intermediate section with system 100 glued flange | 47900 | Show |
 | Installation adhesive 2C installation mortar | 48650 | Show |
 | Waterproofing membrane for joint sealing, liquid | 48651 | Show |
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Material of drain body (material_grundkoerper):
ABS
- TÜV test mark (pruefzeichen):
ID 1111244461
- Socket version (stutzen_ausfuehrung): lateral
- (nennweite):
- Odour trap (geruchsverschluss): included
