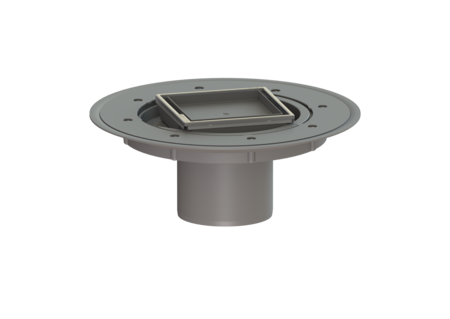

Variofix upper section
System 100, tileable, 304 SST, K 3
KESSEL Variofix upper section, System 100, surface, length 132 mm, width 132 mm, type of cover tileable cover plate, locking lockable, design cover optionally tileable, Cover tileable
- Different covers selectable
- Including waterproofing membrane
| Item no. | 47906 |
|---|---|
| GTIN | 4026092029732 |
| Price group | 10 |
Variofix upper section System 100, tileable, 304 SST, K 3
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 100 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics ATEX: no Dimensions Net weight: 1,26 kg Gross weight: 1,49 kg Diameter: 312 mm Type of height adjustability: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Frame material: Stainless steel 14301 Locking: lockable Load class: K 3 (EN 1253-1) Grating design: optionally tileable Rim width: 132 mm Rim length: 132 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
