Upper section
System 100, Slot design cover, K 3
![](https://assets.kessel.de/pb/640/pb_wgablau_27218_144268.png)

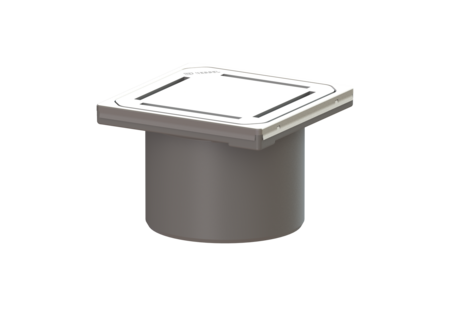

KESSEL Upper section, height 90 mm, length 132 mm, width 132 mm, type of cover Stainless steel cover, locking, frame material Stainless steel 14301, design cover Slot
- Different covers selectable
- Stainless steel covers
Item no. | 27218 |
---|---|
GTIN | 4026092048719 |
Price group | 10 |
Upper section System 100, Slot design cover, K 3
Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 General characteristics ATEX: no Dimensions Net weight: 0,51 kg Gross weight: 0,55 kg Height: 90 mm Packaging dimension: length: 132,5 mm Packaging dimension: width: 132,5 mm Packaging dimension: height: 90,5 mm Coverage features Type of cover: Stainless steel cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Frame material: Stainless steel 14301 Load class: K 3 (EN 1253-1) Grating design: Slot Rim width: 132 mm Rim length: 132 mm Shape of upper section: square Upper section material: ABS
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
