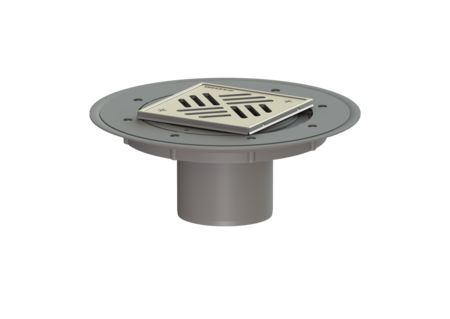

Variofix upper section
System 100, Slotted cover, 304 SST, L 15
KESSEL Variofix upper section, System 100, surface Polished SST, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, design cover Kessel, Cover Stainless steel 14301
- Different covers selectable
- Including waterproofing membrane
| Item no. | 47902 |
|---|---|
| GTIN | 4026092001431 |
| Price group | 10 |
Variofix upper section System 100, Slotted cover, 304 SST, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 100 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions Net weight: 1,7 kg Gross weight: 1,92 kg Diameter: 312 mm Type of height adjustability: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: Polished SST Frame material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Grating design: Kessel Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
