Upper section

System 100, tileable, 304 SST, K 3

27211
PDF product data sheet

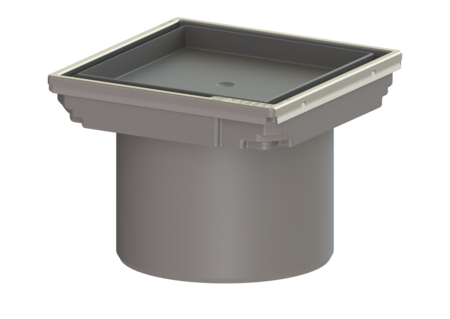

KESSEL Upper section, height 100 mm, length 132 mm, width 132 mm, type of cover tileable cover plate, locking, frame material Stainless steel 14301, design cover

  • Different covers selectable
  • Stainless steel covers
Item no. 27211
GTIN 4026092029145
Price group 10

    Upper section System 100, tileable, 304 SST, K 3
    Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 General characteristics ATEX: no Dimensions Net weight: 0,27 kg Gross weight: 0,3 kg Height: 100 mm Packaging dimension: length: 700 mm Packaging dimension: width: 300 mm Packaging dimension: height: 113 mm Coverage features Type of cover: tileable cover plate Cover material: tileable Colour of cover: selectable Height of cover: 25 mm Frame material: Stainless steel 14301 Load class: K 3 (EN 1253-1) Rim width: 132 mm Rim length: 132 mm Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680224 Cover tileable, Lock & Lift, ABS 680224 Show
    CAD Data
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
