Upper section

System 100, Slotted cover, white, K 3

27192
PDF product data sheet

KESSEL Upper section, height 83 mm, length 200 mm, width 200 mm, type of cover Slotted cover, locking placed, frame material PA, design cover

  • Different covers selectable
  • Stainless steel covers
Item no. 27192
GTIN 4026092000397
Price group 10

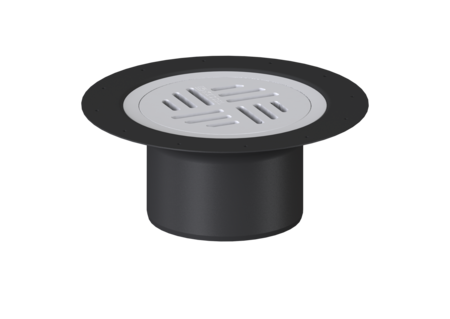

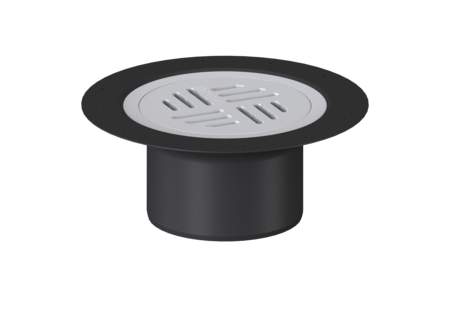

    Upper section System 100, Slotted cover, white, K 3
    Used in combination with a drain body of the KESSEL modular system 100, the upper section is suitable for indoor point drainage. Variant System: 100 Dimensions Net weight: 0,27 kg Gross weight: 0,33 kg Height: 83 mm Packaging dimension: length: 200 mm Packaging dimension: width: 200 mm Packaging dimension: height: 82 mm Coverage features Type of cover: Slotted cover Cover material: Polymer Colour of cover: silver Surface: EDM Frame material: PA Locking: placed Load class: K 3 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    Test Reports and Certificates
    • Cover material (abdeckung_material): Polymer
    • Upper section material (material_aufsatzstueck): ABS
