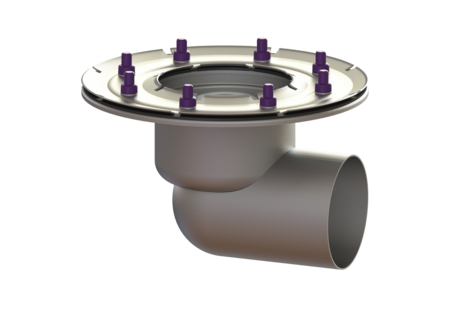

Ferrofix drain body, Press. fl.
Sys125, DN 100, Horiz out
KESSEL Ferrofix drain body, Press. fl., nominal size (DN) 100, System 125, socket lateral, waterproofing layer drain body by Press sealing flange (suitable for creating watertight seals)
- Made of particularly hygienic and mechanically highly resistant stainless steel
- Variably combinable with upper sections
| Item no. | 54220 |
|---|---|
| GTIN | 4026092053669 |
| Price group | 70 |
Ferrofix drain body, Press. fl. Sys125, DN 100, Horiz out
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Odour trap: included Dimensions Net weight: 2,65 kg Gross weight: 2,94 kg Length: 273 mm Width: 273 mm Height: 162 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: lateral
| Title | Item no. | ||
|---|---|---|---|
 | Ferrofix upper section Sys 125, with conn. socket DN 50, L 15 | 48435 | Show |
 | Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 | 48907 | Show |
 | Variofix upper section Slotted cover, 304 SST, K 3 | 48963 | Show |
 | Variofix upper section Slotted grating, 304 SST, L 15 | 48965 | Show |
 | Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3 | 48977 | Show |
 | Upper section 125 150 x150 stainl.st. | 54910 | Show |
 | Clean out syst. 125, 150x150 stainl. st. | 54911 | Show |
 | Upper section System 125 stainl. steel | 54912 | Show |
 | Upper section System 125 stainl. steel | 54913 | Show |
 | Upper section Syst. 125 150x150 | 54914 | Show |
 | Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm | 54915 | Show |
 | Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm | 54916 | Show |
 | Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm | 54917 | Show |
 | Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm | 54919 | Show |
 | Upper section Syst. 125 ABS 150x150 | 54920 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
 | Extension section System 125, with pressure sealing flange | 54187 | Show |
 | Extension section System 125, side inlet DN 50/40 | 54189 | Show |
 | Extension section System 125, 304 stainless steel | 54900 | Show |
 | Extension section System 125, with glued flange | 54901 | Show |
 | Extension section System 125, Side inlet DN 50 | 54902 | Show |
 | Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 100
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- TÜV test mark (pruefzeichen):
ID 1111244461
- Socket version (stutzen_ausfuehrung):
lateral
- Odour trap (geruchsverschluss): included
