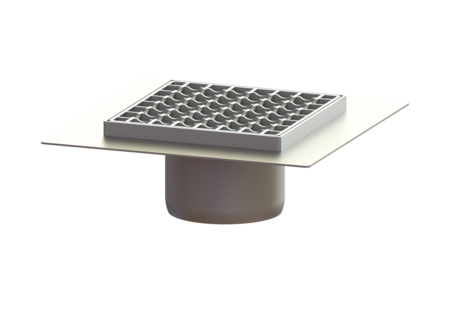

Ferrofix upper section

Sys 125, Gl fl., slot grat., 200x200 mm

54917
54917
PDF product data sheet

KESSEL Ferrofix upper section, surface pickled, length 200 mm, width 200 mm, type of cover Slotted cover, locking unlocked, design cover, Cover Stainless steel 14301

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 54917
GTIN 4026092072431
Price group 70

    Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Standard: EN 1253-1 Dimensions Net weight: 4,34 kg Gross weight: 4,78 kg Length: 300 mm Width: 300 mm Height: 100 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: pickled Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Rim width: 200 mm Rim length: 200 mm Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
