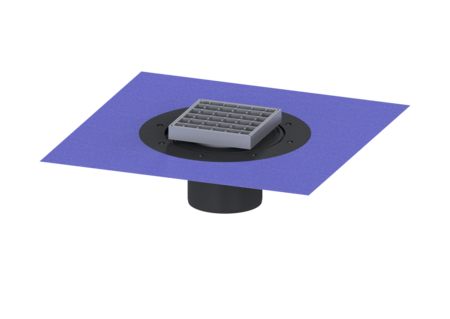

Variofix upper section

Slotted grating, 304 SST, L 15

48965
48965
PDF product data sheet

KESSEL Variofix upper section, System, surface pickled, length 150 mm, width 150 mm, type of cover Slotted cover, locking placed, design cover Cross, Cover Stainless steel 14301

  • Different covers selectable
  • Including waterproofing membrane
Item no. 48965
GTIN 4026092004708
Price group 70

    Variofix upper section Slotted grating, 304 SST, L 15
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant Seal: Lip seal Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics ATEX: no Dimensions Vertical adjustment: 23 - 40 mm Net weight: 2,4 kg Gross weight: 2,64 kg Diameter: 312 mm Type of height adjustability: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Surface: pickled Frame material: Stainless steel 14301 Locking: placed Load class: L 15 (EN 1253-1) Grating design: Cross Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
    48650 Installation adhesive 2C installation mortar 48650 Show
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
