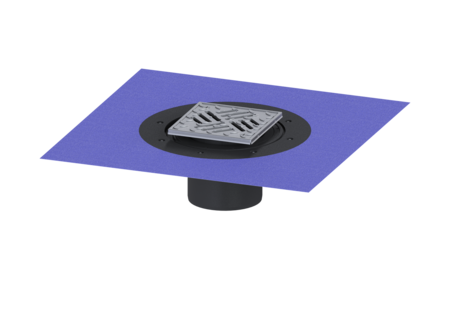

Variofix upper section
Slotted cover, 304 SST, anti-slip, L 15
KESSEL Variofix upper section, System 125, surface, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, design cover Kessel, Cover Stainless steel 14301
- Different covers selectable
- Including waterproofing membrane
| Item no. | 48907 |
|---|---|
| GTIN | 4026092053690 |
| Price group | 70 |
Variofix upper section Slotted cover, 304 SST, anti-slip, L 15
Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 Seal: Lip seal Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I General characteristics ATEX: no Dimensions Vertical adjustment: 10 - 18 mm Net weight: 1,57 kg Gross weight: 1,96 kg Diameter: 312 mm Type of height adjustability: vertically adjustable upper section Height: 120 mm Packaging dimension: length: 390 mm Packaging dimension: width: 190 mm Packaging dimension: height: 310 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Frame material: Stainless steel 14301 Locking: screwed Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim width: 150 mm Rim length: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
