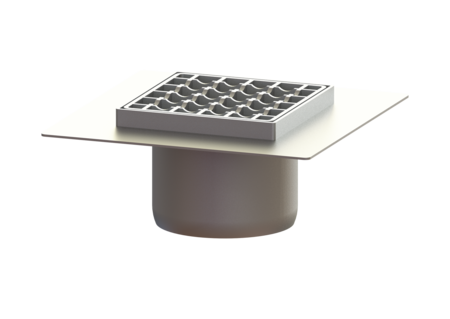

Ferrofix upper section
Sys 125, Gl fl., slot grat., 146x146 mm
KESSEL Ferrofix upper section, surface pickled, length 146 mm, width 146 mm, type of cover Slotted cover, locking unlocked, design cover, Cover Stainless steel 14301
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 54915 |
|---|---|
| GTIN | 4026092072462 |
| Price group | 70 |
Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. The upper section is suitable for thin-layered floorings (e.g. epoxy resin) and has a circumferential adhesive joint edge (15 mm deep and 50 mm folded outwards). Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics ATEX: no Dimensions Net weight: 2,7 kg Gross weight: 2,86 kg Length: 246 mm Width: 246 mm Height: 100 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: pickled Locking: unlocked Load class: L 15 / M 125 (EN 1253-1) Rim width: 146 mm Rim length: 146 mm Shape of upper section: square Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
