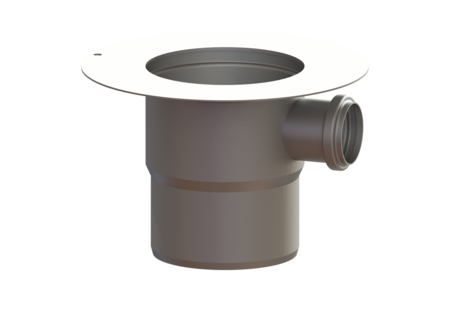

Extension section
System 125, horiz Inlet DN 50, Gl fl.
System 125 extension section with glued flange and side inlet DN 50, with a push-fit socket and seal, for extension between the drain body and upper section.
| Item no. | 54903 |
|---|---|
| GTIN | 4026092072295 |
| Price group | 70 |
Extension section System 125, horiz Inlet DN 50, Gl fl.
System 125 extension section with glued flange and side inlet DN 50, with a push-fit socket and seal, for extension between the drain body and upper section. Variant System: 125 Seal: Lip seal General characteristics Material: Stainless steel ATEX: no Dimensions Net weight: 1,96 kg Gross weight: 2,12 kg Diameter: 240 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Inlet nominal size (DN): 50 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Material (material):
Stainless steel
