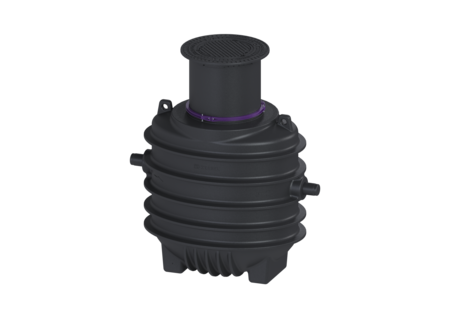

Grease seperator EasyClean ground

NS 1, Standard, 690-1190 mm, Class A/B

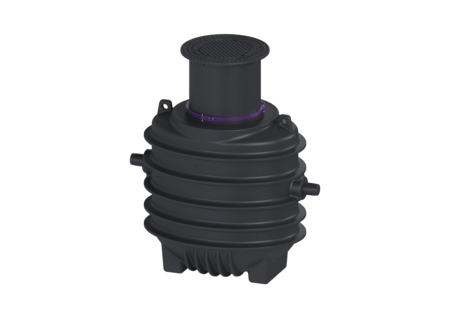

95010-120B
95010-120B
PDF product data sheet

KESSEL Grease seperator EasyClean ground, disposal Standard, nominal size 1,00, load class B 125, underground installation, installation depth 690 - 1190 mm, type of disposal manual with suction hose, locking Lock & Lift

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Resistant to groundwater
  • Low-maintenance operation
Item no. 95010-120B
GTIN 4026092100301
Price group 60

    Grease seperator EasyClean ground NS 1, Standard, 690-1190 mm, Class A/B
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic structural components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via a service access cover. Manual disposal is carried out with the tank open. A load distribution slab must be installed on site for load class D. The reinforcement drawings are part of the EBA and are available from KESSEL. The tank is groundwater resistant up to ground level (GL). 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 1200 mm Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 1,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004, DIN 4040-100 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 215 kg Gross weight: 215 kg Installation depth: 690 - 1190 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Length: 1700 mm Width: 1090 mm Height: 1515 mm Packaging dimension: length: 1300 mm Packaging dimension: width: 2200 mm Packaging dimension: height: 1665 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 800 mm Distance pipe bottom inlet to tank bottom: 870 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: Lock & Lift Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 550 l Max. grease layer thickness: 42 mm Total volume: 650 l Contents of sludge trap: 100 l Storage quantity of grease: 40 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
    9151010B Sampling chamber LW 1000, DN 100, Class B 9151010B Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915880B Sampling chamber LW 400, DN 100/150, class B 915880B Show
    915881B Sampling chamber d: 450 mm, DN 100, Class B 915881B Show
    915882B Sampling chamber DN 150, Class B 915882B Show
    917413 Access panel for mounting on-wall 917413 Show
    917414 Access panel for in-wall installation 917414 Show
    917419.00 Direct disposal Disposal connection, right 917419.00 Show
    917419.50 Direct disposal Disposal connection, left 917419.50 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    917421 Connection set for underground separators 917421 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917823 SonicControl cable gland Underground separator installation set 917823 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    681102 Cover plate LW 600 Lock&Lift, class B, separator 681102 Show
    860104 Seal d: 630 mm, from 01/2015 860104 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 1
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 690  mm
