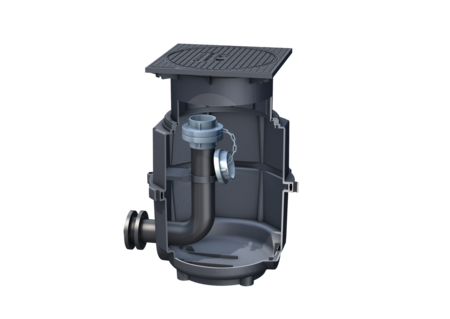

Direct disposal
LW 400, Disposal connection, right
Direct disposal with disposal connection on the right, suitable for grease separator. Equipped in the factory for underground grease separators with direct disposal connection including disposal chamber LW 400 - with flange joint DN 65, PN 10 (welding neck and flange) for suction pipe on site - with Storz B coupling R 2 1/2" for disposal vehicle - with chamber system LW 400 incl. sealed class A/B/D cover, installation depth 630 mm to 980 mm - for nominal size NS 1 - NS 20 - without grease separator Delivery: Installed suction device for joint disposal from sludge trap and separator chamber. Tank and direct connection completely assembled, disposal pipe and Storz B connection on site.
Item no. | 917420.00 |
---|---|
GTIN | 4026092055540 |
Price group | 60 |
Direct disposal LW 400, Disposal connection, right
Direct disposal with disposal connection on the right, suitable for grease separator. Equipped in the factory for underground grease separators with direct disposal connection including disposal chamber LW 400 - with flange joint DN 65, PN 10 (welding neck and flange) for suction pipe on site - with Storz B coupling R 2 1/2" for disposal vehicle - with chamber system LW 400 incl. sealed class A/B/D cover, installation depth 630 mm to 980 mm - for nominal size NS 1 - NS 20 - without grease separator Delivery: Installed suction device for joint disposal from sludge trap and separator chamber. Tank and direct connection completely assembled, disposal pipe and Storz B connection on site. General characteristics ATEX: no Dimensions Net weight: 50 kg Gross weight: 50 kg Clear width (LW): 400 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 500 mm
