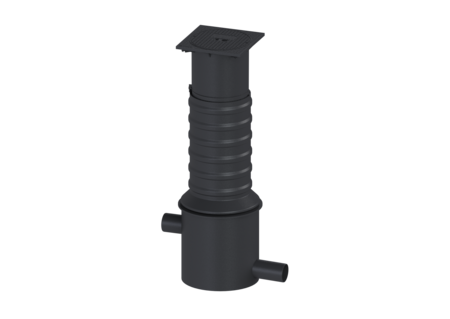

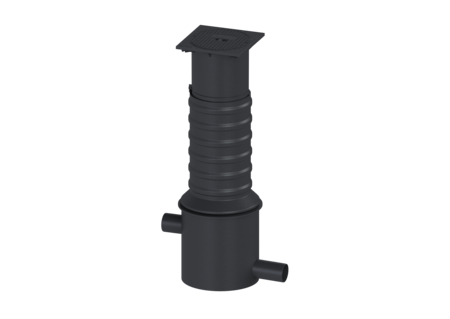

Sampling chamber

d: 450 mm, DN 100, Class B

915881B
PDF product data sheet

Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight

Item no. 915881B
GTIN 4026092055403
Price group 60

    Sampling chamber d: 450 mm, DN 100, Class B
    Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight General characteristics Colour: black Material: PE ATEX: no Dimensions Net weight: 30 kg Gross weight: 36 kg Vertical drop between inlet and outlet: 160 mm Installation depth: 950 - 1300 mm Type of height adjustability: vertically adjustable upper section Length: 730 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1200 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 205 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Clear width of tank (LW): 450 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680553 Cover plate Class B, with seal 680553 Show
    • Material (material): PE
