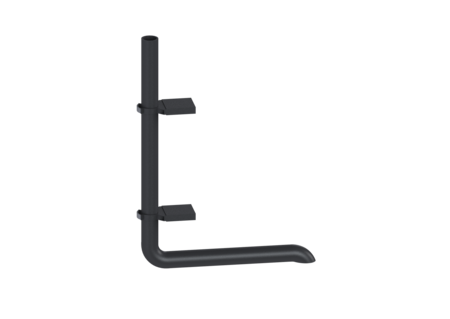

Direct disposal
Disposal connection, right
Direct disposal without disposal chamber with disposal connection on right for grease separator. Equipped in the factory for underground grease separators - with flange joint DN 65, PN 10 (welding neck and flange) for suction pipe on site - with Storz B coupling R 2 1/2" for disposal vehicle - for nominal size NS 1 - NS 35 - without grease separator Delivery: Installed suction device for joint disposal from sludge trap and separator chamber. Tank and direct connection completely assembled, disposal pipe and Storz B connection on site.
| Item no. | 917419.00 |
|---|---|
| GTIN | 4026092055526 |
| Price group | 60 |
Direct disposal Disposal connection, right
Direct disposal without disposal chamber with disposal connection on right for grease separator. Equipped in the factory for underground grease separators - with flange joint DN 65, PN 10 (welding neck and flange) for suction pipe on site - with Storz B coupling R 2 1/2" for disposal vehicle - for nominal size NS 1 - NS 35 - without grease separator Delivery: Installed suction device for joint disposal from sludge trap and separator chamber. Tank and direct connection completely assembled, disposal pipe and Storz B connection on site. General characteristics ATEX: no Dimensions Net weight: 25 kg Gross weight: 25 kg Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 150 mm
