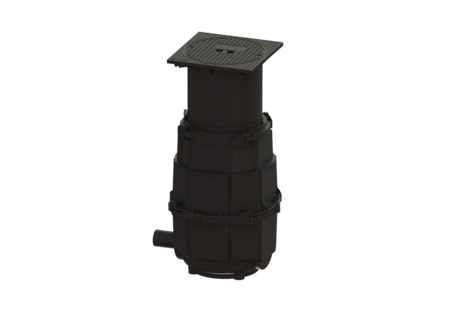

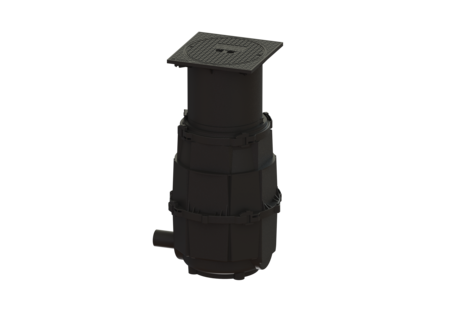

Disposal chamber

LW 400, underground separators, A/B

917422B

Disposal chamber LW 400 for connection of the direct disposal consisting of chamber system LW 400, cover plate, flange joint DN 65, PN 10 (welding neck and flange) for suction pipe with Storz-B coupling R 2 1/2” for disposal vehicles. Suitable for grease separator NS 1 to NS 20. Chamber completely assembled.

Item no. 917422B
GTIN 4026092071274
Price group 60

    Disposal chamber LW 400, underground separators, A/B
    Disposal chamber LW 400 for connection of the direct disposal consisting of chamber system LW 400, cover plate, flange joint DN 65, PN 10 (welding neck and flange) for suction pipe with Storz-B coupling R 2 1/2” for disposal vehicles. Suitable for grease separator NS 1 to NS 20. Chamber completely assembled. General characteristics Colour: black Material: Polymer Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection ATEX: no Dimensions Net weight: 19 kg Gross weight: 24 kg Groundwater resistant from lower edge of base section: 500 mm Clear width (LW): 400 mm Min. insertion depth: 50 mm Installation depth: 710 - 1080 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 750 mm Coverage features Load class: B 125 (EN 124)
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680058 Seal O-ring for cover plate 680058 Show
    680314 Clamping ring for chamber system LW 400 680314 Show
    680315 Seal for chamber system LW 400 680315 Show
    680553 Cover plate Class B, with seal 680553 Show
    850120 Upper section height-adjustable, cl. A/B 850120 Show
    • Material (material): Polymer
