Upper section

height-adjustable, cl. A/B

850120

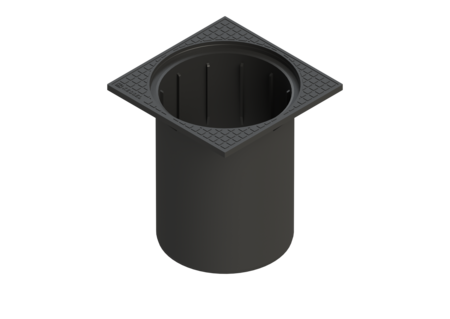

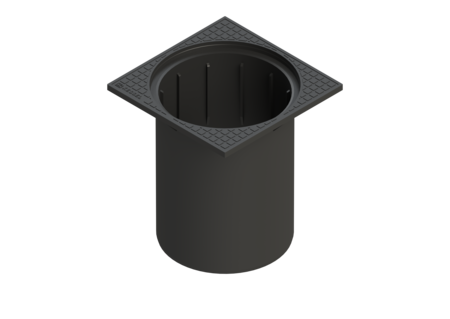

The polymer upper section is suitable for LW 400 chamber systems and is equipped with a clamping ring and a hanger for sludge buckets. Continuously height-adjustable by 440 mm. An embedded step must be installed if the allowable difference between the top of the chamber cover and the first step is exceeded.

Item no. 850120
GTIN 4026092003060
Price group 60

    Upper section height-adjustable, cl. A/B
    The polymer upper section is suitable for LW 400 chamber systems and is equipped with a clamping ring and a hanger for sludge buckets. Continuously height-adjustable by 440 mm. An embedded step must be installed if the allowable difference between the top of the chamber cover and the first step is exceeded. Variant System: 400 General characteristics ATEX: no Dimensions Net weight: 3,5 kg Gross weight: 3,5 kg Type of height adjustability: vertically adjustable upper section Length: 400 mm Width: 400 mm Height: 440 mm Packaging dimension: length: 400 mm Packaging dimension: width: 400 mm Packaging dimension: height: 440 mm Coverage features Colour of cover: black Surface: EDM Load class: B 125 (EN 124) Rim width: 400 mm Rim length: 400 mm Upper section material: Polymer
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    CAD Data
    • Upper section material (material_aufsatzstueck): Polymer
    • (abdeckung_material):
    • Load class (belastungsklasse): B 125 (EN 124)
