Grease separator EasyClean ground

NS 10, Standard, 740-1175 mm, Class D

93010/120D
PDF product data sheet

KESSEL Grease separator EasyClean ground, installation depth 740 - 1175 mm, disposal Standard, type of disposal manual with suction hose, nominal size 10,00, load class D 400, underground installation, volume 7035,6 dm³

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation
Item no. 93010/120D
GTIN 4026092025802
Price group 60

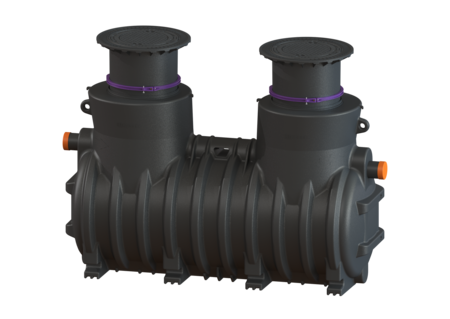

    Grease separator EasyClean ground NS 10, Standard, 740-1175 mm, Class D
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 1200 mm Chamber system: Cistern Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 10,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) ATEX: no Dimensions Net weight: 408 kg Gross weight: 415 kg Groundwater resistant from lower edge of base section: 1320 mm Diameter: 659 mm DSC: 700 - 1.500 T-DSC: 220 Max. length: 3062 mm Installation depth: 740 - 1175 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 2910 mm Required access area, width: 1200 mm Packaging dimension: length: 2860 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2050 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1030 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 121 mm Locking: locked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1600 l Total volume: 2600 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    9151015D Sampling chamber LW 1000, DN 150, Class D 9151015D Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915880D Sampling chamber LW 400, DN 100/150, class D 915880D Show
    915882D Sampling chamber DN 150, Class D 915882D Show
    917413 Access panel for mounting on-wall 917413 Show
    917414 Access panel for in-wall installation 917414 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    		Direct disposal LW 400, Disposal connection, left 917420.50 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917460 Extension section d: 600 mm, Extension 500 mm 917460 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    860104 Seal d: 630 mm, from 01/2015 860104 Show
    860119 Cover plate Class B, grey cast iron, with seal 860119 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 10
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 740  mm
    • Gross weight (gewicht_brutto): 415  kg
