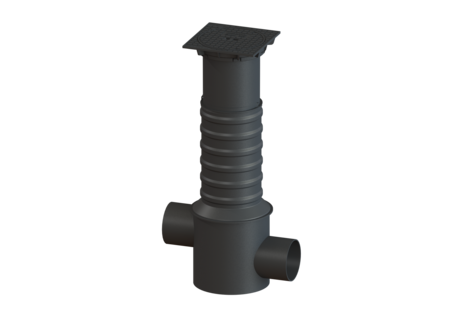

Sampling chamber

DN 150, Class D

915882D
PDF product data sheet

Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL.

Item no. 915882D
GTIN 4026092048542
Price group 60

    Sampling chamber DN 150, Class D
    Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. General characteristics Colour: black Material: PE ATEX: no Dimensions Net weight: 48 kg Gross weight: 54 kg Vertical drop between inlet and outlet: 160 mm Installation depth: 950 - 1300 mm Type of height adjustability: vertically adjustable upper section Length: 730 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1200 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 205 mm Outlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Clear width of tank (LW): 450 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680313 Cover plate Class D, grey cast iron 680313 Show
    • Material (material): PE
