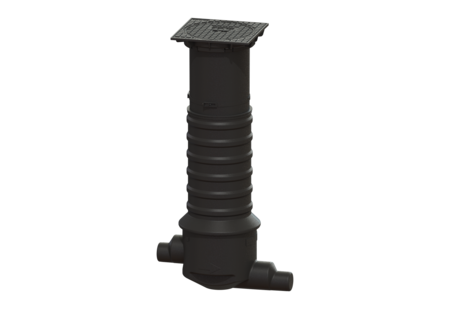

Sampling chamber

LW 400, DN 100/150, class D

915880D

Sampling chamber LW 400 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL.

Item no. 915880D
GTIN 4026092025062
Price group 60

    Sampling chamber LW 400, DN 100/150, class D
    Sampling chamber LW 400 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. General characteristics Colour: black Material: PE ATEX: no Dimensions Net weight: 39 kg Gross weight: 45 kg Vertical drop between inlet and outlet: 120 mm Installation depth: 400 - 1300 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1270 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 120 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Clear width of tank (LW): 400 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680313 Cover plate Class D, grey cast iron 680313 Show
    680314 Clamping ring for chamber system LW 400 680314 Show
    680315 Seal for chamber system LW 400 680315 Show
    680316 Seal O-ring for cover plate, class D 680316 Show
    850121 Upper section height-adjustable, cl. D 850121 Show
    • Material (material): PE
