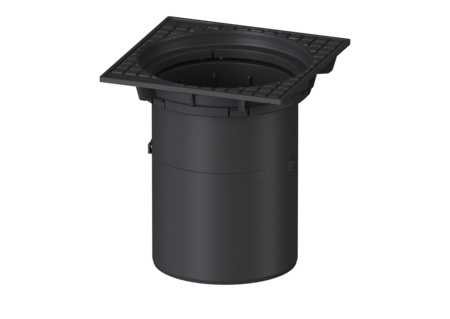

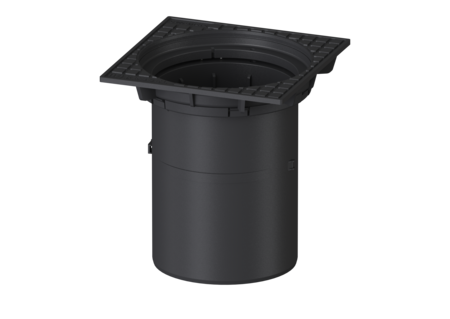

Upper section

height-adjustable, cl. D

850121

The polymer upper section is suitable for LW 400 chamber systems and is equipped with a clamping ring and a hanger for sludge buckets. Continuously height-adjustable by 440 mm. If installed in roads, parking areas and comparable hard-surfaced traffic areas for trucks (Class D), the upper section must be underlaid on site with an approx. 15 cm thick reinforced supporting slab with at least 0.75 x 0.75 m made of B35 concrete. The exact design of the concrete slab must be calculated structurally according to the circumstances on site. A standard formwork and reinforcement drawing can be provided.

Item no. 850121
GTIN 4026092003077
Price group 60

    Upper section height-adjustable, cl. D
    The polymer upper section is suitable for LW 400 chamber systems and is equipped with a clamping ring and a hanger for sludge buckets. Continuously height-adjustable by 440 mm. If installed in roads, parking areas and comparable hard-surfaced traffic areas for trucks (Class D), the upper section must be underlaid on site with an approx. 15 cm thick reinforced supporting slab with at least 0.75 x 0.75 m made of B35 concrete. The exact design of the concrete slab must be calculated structurally according to the circumstances on site. A standard formwork and reinforcement drawing can be provided. Variant System: 400 General characteristics ATEX: no Dimensions Net weight: 16 kg Gross weight: 16 kg Type of height adjustability: vertically adjustable upper section Length: 450 mm Width: 450 mm Height: 450 mm Packaging dimension: length: 450 mm Packaging dimension: width: 450 mm Packaging dimension: height: 460 mm Coverage features Colour of cover: black Surface: EDM Load class: D 400 (EN 124) Rim width: 450 mm Rim length: 450 mm Upper section material: Polymer
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680313 Cover plate Class D, grey cast iron 680313 Show
    850137 Slotted cover round, d: 395 mm, Grey iron 850137 Show
    CAD Data
    • Upper section material (material_aufsatzstueck): Polymer
    • (abdeckung_material):
    • Load class (belastungsklasse): D 400 (EN 124)
