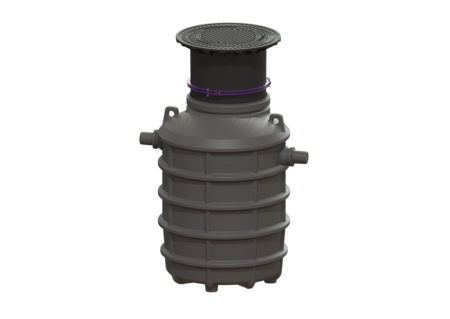

Grease separator EasyClean ground

NS 4, Standard, 550-950 mm, Class D

93004/80D
PDF product data sheet

KESSEL Grease separator EasyClean ground, installation depth 550 - 950 mm, disposal Standard, type of disposal manual with suction hose, nominal size 4,00, load class D 400, underground installation, volume 2080 dm³

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation

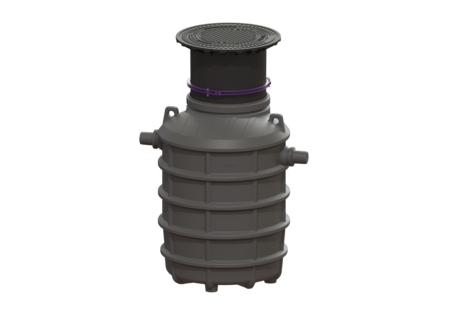

Item no. 93004/80D
GTIN 4026092025604
Price group 60

    Grease separator EasyClean ground NS 4, Standard, 550-950 mm, Class D
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 800 mm Chamber system: Standard chamber system Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 4,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E4 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 133 kg Gross weight: 140 kg Groundwater resistant from lower edge of base section: 500 mm Diameter: 648 mm Installation depth: 550 - 950 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 1380 mm Required access area, width: 1106 mm Required access area, height: 1550 mm Packaging dimension: length: 1000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1600 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1040 mm Distance pipe bottom inlet to tank bottom: 1110 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Locking: unlocked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 370 l Total volume: 770 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    9151010D Sampling chamber LW 1000, DN 100, Class D 9151010D Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915880D Sampling chamber LW 400, DN 100/150, class D 915880D Show
    915881D Sampling chamber d: 450 mm, DN 100, Class D 915881D Show
    917413 Access panel for mounting on-wall 917413 Show
    917414 Access panel for in-wall installation 917414 Show
    917419.00 Direct disposal Disposal connection, right 917419.00 Show
    917419.50 Direct disposal Disposal connection, left 917419.50 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    		Direct disposal LW 400, Disposal connection, left 917420.50 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917460 Extension section d: 600 mm, Extension 500 mm 917460 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    860116 Seal for upper sections d: 600 mm 860116 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 4
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 550  mm
    • Gross weight (gewicht_brutto): 140  kg
