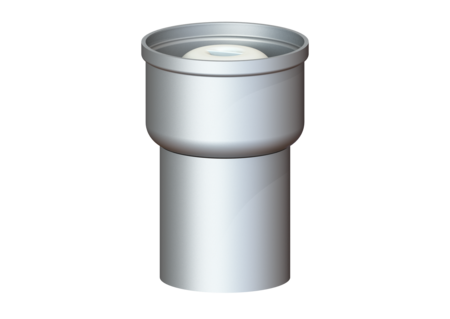

Ferrofix drain body

Sys 125, DN 100, Vertical outlet

54430
54430
PDF product data sheet

KESSEL Ferrofix drain body, System 125, nominal size (DN) 100, socket vertical, waterproofing layer drain body by Connection flange, outside diameter (OD) 110 mm

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • Variably combinable with upper sections
Item no. 54430
GTIN 4026092053645
Price group 70

Ferrofix drain body Sys 125, DN 100, Vertical outlet
In combination with a System 125 upper section, the Ferrofix stainless steel drain body is used for point drainage and is equipped with a removable odour trap and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Approval: Z-19.53-2414,Z-19.17-1719 ATEX: no Odour trap: included Dimensions Net weight: 1,12 kg Gross weight: 1,28 kg Length: 142 mm Width: 142 mm Height: 204 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 Socket version: vertical
  Title Item no.
48435 Ferrofix upper section Sys 125, with conn. socket DN 50, L 15 48435 Show
48907 Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
48963 Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
48965 Variofix upper section Slotted grating, 304 SST, L 15 48965 Show
48977 Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3 48977 Show
54910 Upper section 125 150 x150 stainl.st. 54910 Show
54911 Clean out syst. 125, 150x150 stainl. st. 54911 Show
54912 Upper section System 125 stainl. steel 54912 Show
54913 Upper section System 125 stainl. steel 54913 Show
54914 Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm 54914 Show
54915 Ferrofix upper section Sys 125, Gl fl., slot grat., 146x146 mm 54915 Show
54916 Ferrofix upper section Sys 125, Slotted grating, 200 x 200 mm 54916 Show
54917 Ferrofix upper section Sys 125, Gl fl., slot grat., 200x200 mm 54917 Show
54919 Ferrofix upper section Sys125, Gl fl., Slot cover, 146x146 mm 54919 Show
54920 Upper section Syst. 125 ABS 150x150 54920 Show
  Title Item no.
  Title Item no.
48100 Fire protection insert Fire-Kit 100, for DN 100 48100 Show
48987 Extension section H: 136 mm, without inlet 48987 Show
48989 Extension section H: 136 mm, with side inlet DN 50 48989 Show
48990 Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
48991 Quick-Fit pipe penetration seal for core drillholes, w/o fire protection 48991 Show
54187 Extension section System 125, with pressure sealing flange 54187 Show
54189 Extension section System 125, side inlet DN 50/40 54189 Show
54900 Extension section System 125, 304 stainless steel 54900 Show
54901 Extension section System 125, with glued flange 54901 Show
54902 Extension section System 125, Side inlet DN 50 54902 Show
54903 Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Show
  Title Item no.
54188 Odour trap Ferrofix, Sealing water height 50 mm 54188 Show
  • Nominal size (DN) (nennweite): 100
  • Material of drain body (material_grundkoerper): Stainless steel 14301
  • TÜV test mark (pruefzeichen): ID 1111244461
  • Socket version (stutzen_ausfuehrung): vertical
  • Odour trap (geruchsverschluss): included
