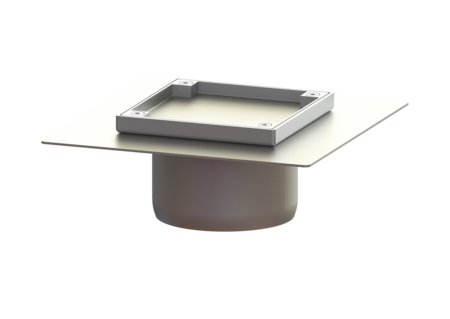

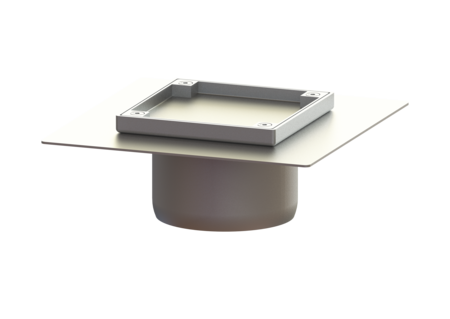

Clean out syst. 125, 150x150 stainl. st.
KESSEL, surface Polished SST, length 146 mm, width 146 mm, type of cover tileable cover plate, Cover Stainless steel 14301
| Item no. | 54911 |
|---|---|
| GTIN | 4026092072394 |
| Price group | 70 |
Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 2,14 kg Gross weight: 2,3 kg Length: 246 mm Width: 246 mm Height: 100 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Coverage features Type of cover: tileable cover plate Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: Polished SST Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim width: 146 mm Rim length: 146 mm Max. flooring height: 15 mm Shape of upper section: square Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): tileable cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
