Ferrofix upper section

Sys 125, with conn. socket DN 50, L 15

48435
PDF product data sheet

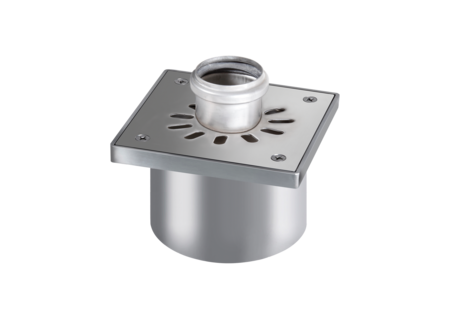

KESSEL Ferrofix upper section, length 150 mm, width 150 mm, type of cover Cover plate with connection socket, shape of upper section square, locking screwed, design cover, Cover Stainless steel 14301, waterproofing layer upper section by Connection flange

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 48435
GTIN 4026092066744
Price group 70

    Ferrofix upper section Sys 125, with conn. socket DN 50, L 15
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Connection flange General characteristics ATEX: no Dimensions Net weight: 3 kg Gross weight: 3,1 kg Length: 147 mm Width: 147 mm Height: 99 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 150 mm Coverage features Type of cover: Cover plate with connection socket Cover material: Stainless steel 14301 Surface: Polished SST Locking: screwed Load class: L 15 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
