EasyClean free Standard grease separator

The uncomplicated solution for exposed installation.

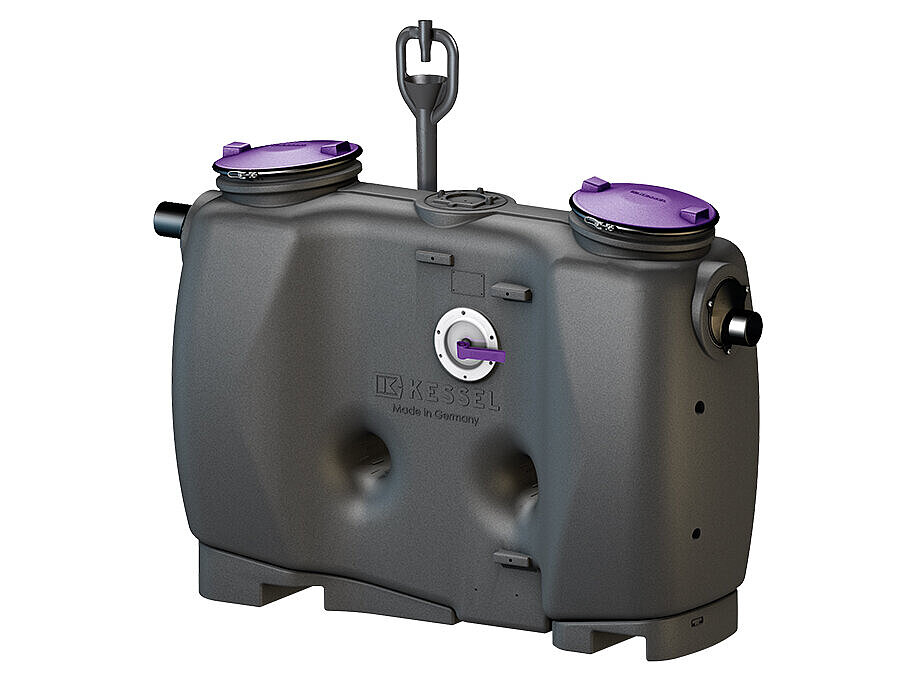

EasyClean free Standard grease separator, NS 2 - 10

The EasyCleanfree Standard is the basic version grease separator. The odour-tight domed covers of the grease separator have to be opened for emptying and cleaning. Extraction and rinsing of the grease separator take place manually. It is preferably cleaned with hot water through the maintenance openings.

The grease separator is available in nominal sizes NS 2 to NS 10, which is sufficient for most businesses such as restaurants and hotels. It is also available in nominal sizes NS 15 to NS 50 for larger volumes of wastewater. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages Article overview

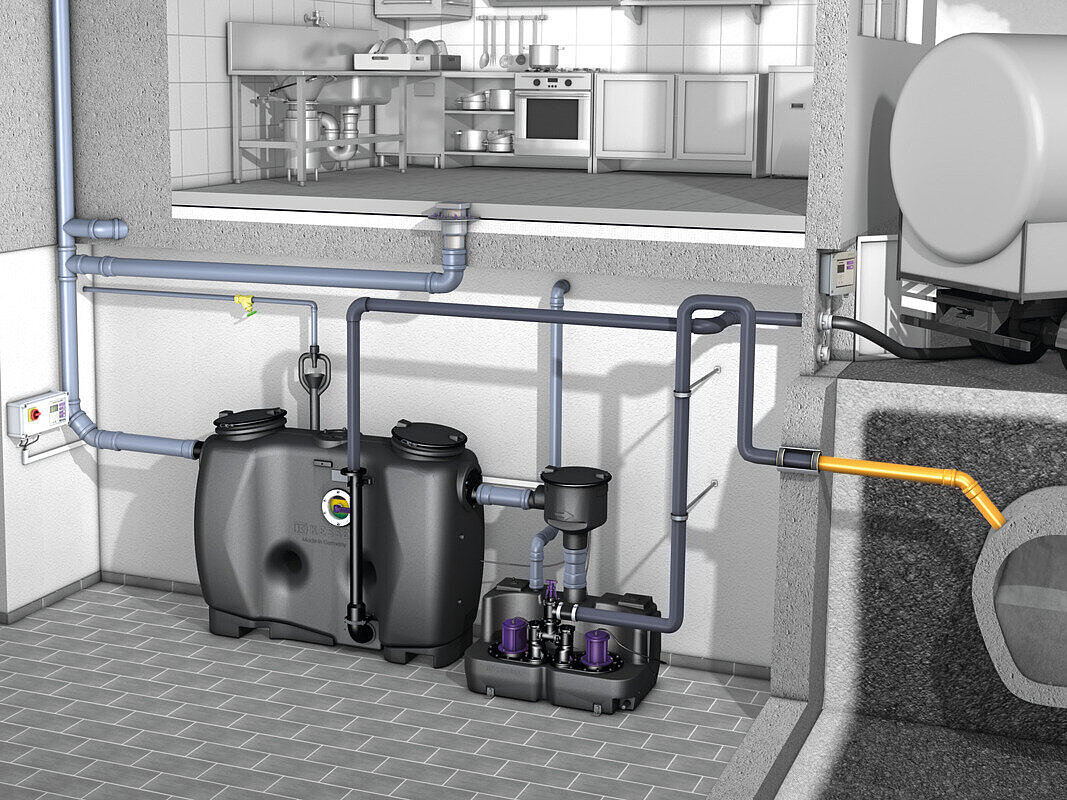

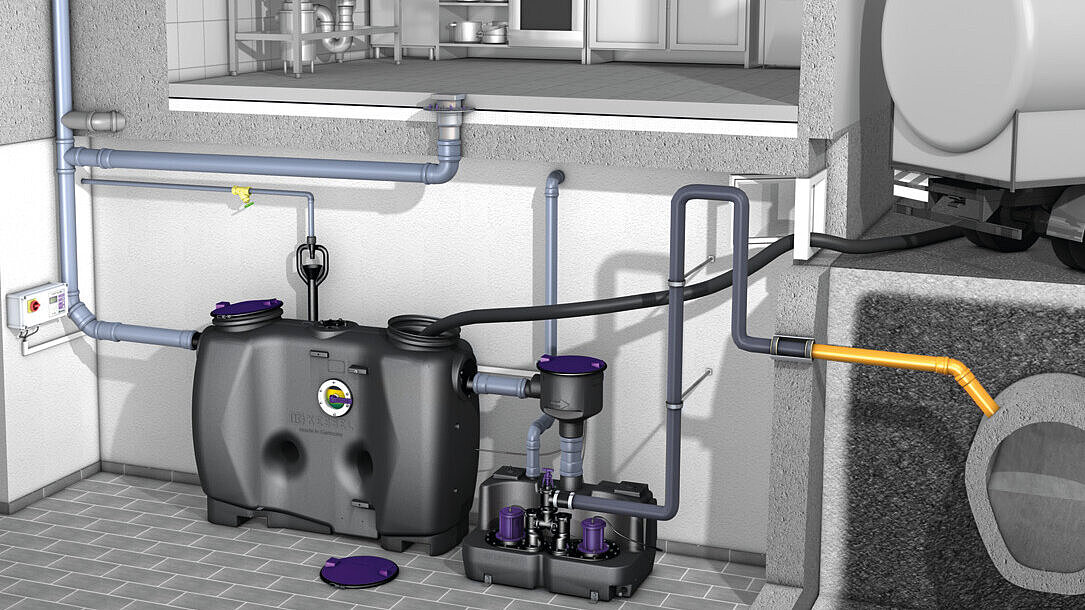

Installation diagram of EasyClean free Standard grease separator, NS 2 - 10

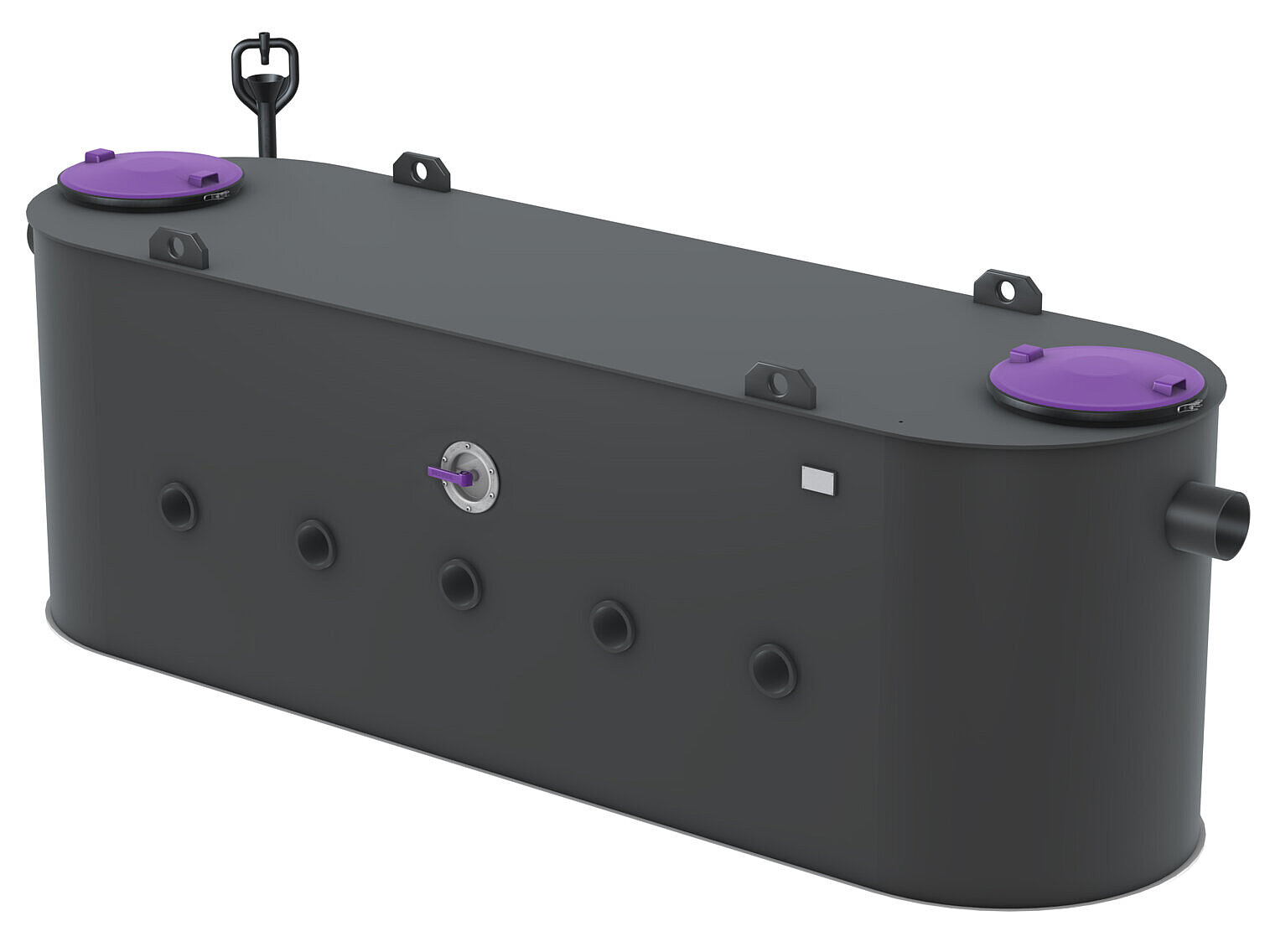

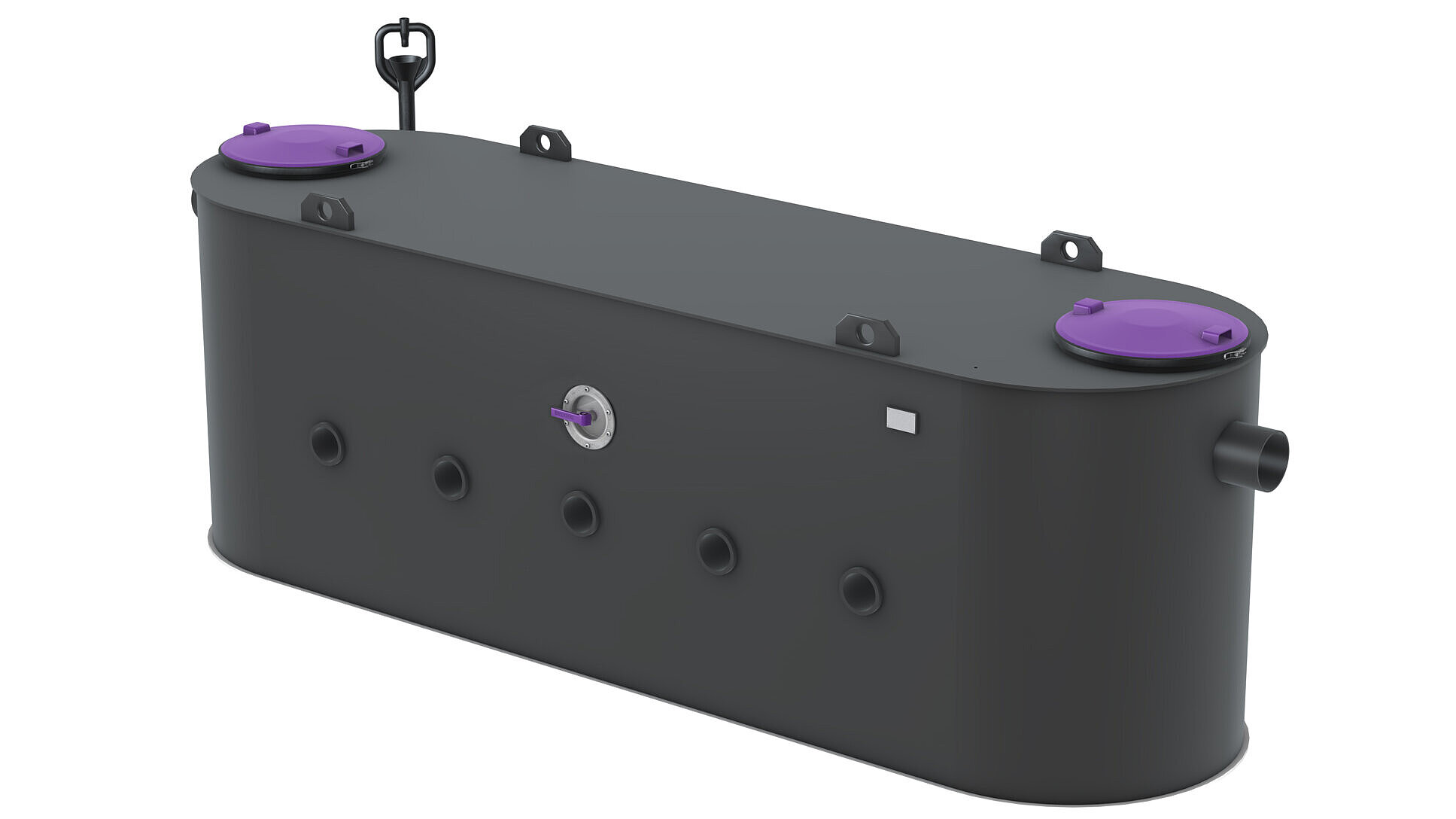

EasyClean free Standard grease separator, NS 15 - 50

Performance diagram for 3.0 kW pump

Basic version

The EasyClean free Standard is the basic version of our EasyClean grease separator family It includes all the essential functions.

The KESSEL range includes further grease separators with other advantages.

Polymer grease are durable and corrosion-free.

100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

SonicControl grease layer thickness measuring device

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

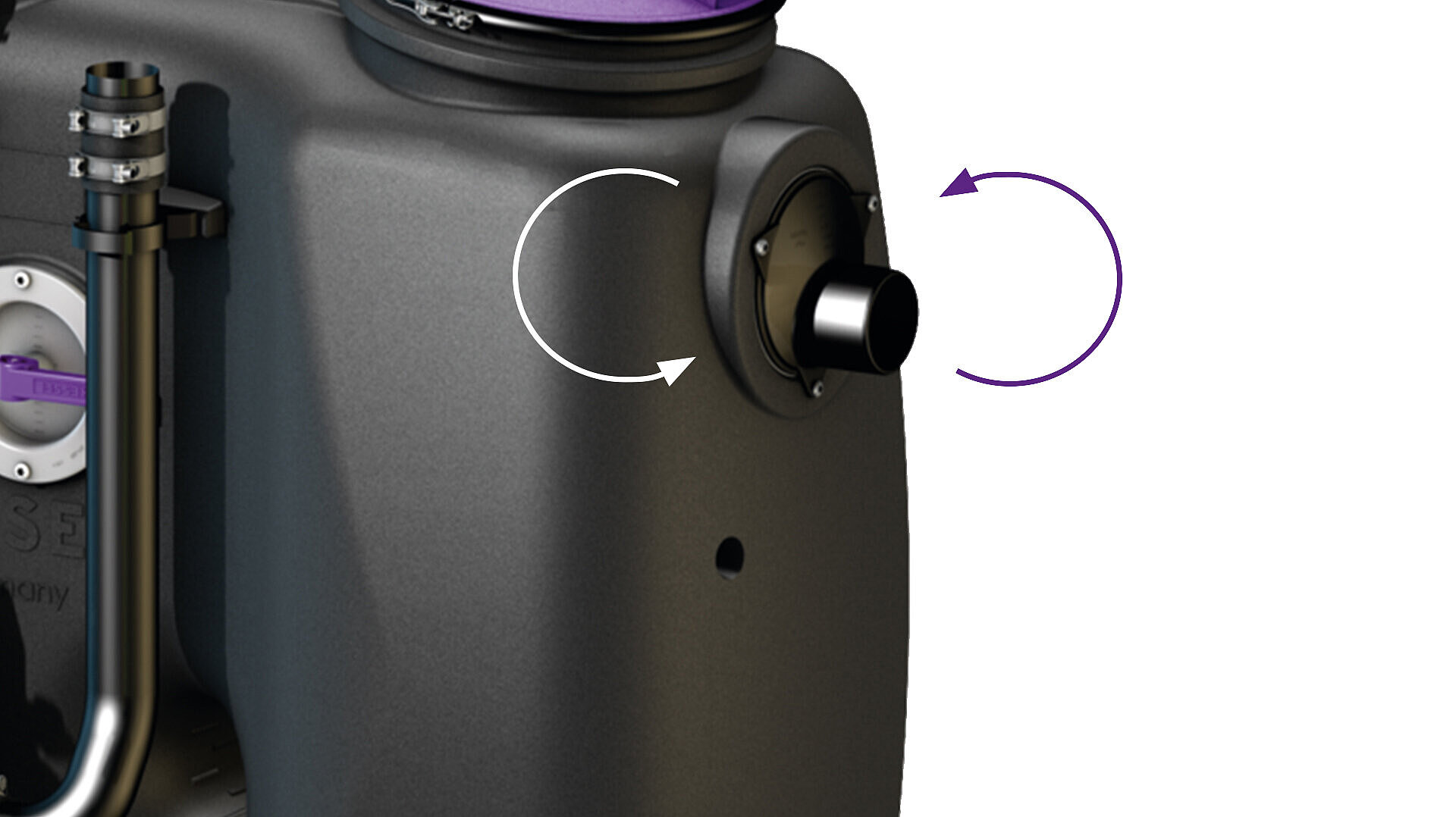

Changeover socket for EasyClean free grease separator

Changeover socket

The flow direction can easily be changed on site thanks to the self-sealing changeover socket. A distinction no longer needs to be made between the “direction of flow right” or “direction of flow left” variants – making the design much easier.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment

EasyClean free Standard

With SonicControl

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.02	100 mm	2	100 mm	674 mm	1,736 mm	93002.02	Show
93003.02	100 mm	3	100 mm	674 mm	1,736 mm	93003.02	Show
93004.02	100 mm	4	100 mm	680 mm	2,116 mm	93004.02	Show
93007.02	150 mm	7	150 mm	948 mm	2,147 mm	93007.02	Show
93010.02	150 mm	10	150 mm	951 mm	2,822 mm	93010.02	Show

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.22	100 mm	2	100 mm	674 mm	1,736 mm	93002.22	Show
93003.22	100 mm	3	100 mm	674 mm	1,736 mm	93003.22	Show
93004.22	100 mm	4	100 mm	680 mm	2,116 mm	93004.22	Show
93007.22	150 mm	7	150 mm	948 mm	2,147 mm	93007.22	Show
93010.22	150 mm	10	150 mm	951 mm	2,822 mm	93010.22	Show

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.12	100 mm	2	100 mm	674 mm	1,736 mm	93002.12	Show
93003.12	100 mm	3	100 mm	674 mm	1,736 mm	93003.12	Show
93004.12	100 mm	4	100 mm	680 mm	2,116 mm	93004.12	Show
93007.12	150 mm	7	150 mm	948 mm	2,147 mm	93007.12	Show
93010.12	150 mm	10	150 mm	951 mm	2,822 mm	93010.12	Show

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.32	100 mm	2	100 mm	674 mm	1,736 mm	93002.32	Show
93003.32	100 mm	3	100 mm	674 mm	1,736 mm	93003.32	Show
93004.32	100 mm	4	100 mm	680 mm	2,116 mm	93004.32	Show
93007.32	150 mm	7	150 mm	948 mm	2,147 mm	93007.32	Show
93010.32	150 mm	10	150 mm	951 mm	2,822 mm	93010.32	Show

Without SonicControl

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.01	100 mm	2	100 mm	674 mm	1,736 mm	93002.01	Show
93003.01	100 mm	3	100 mm	674 mm	1,736 mm	93003.01	Show
93004.01	100 mm	4	100 mm	680 mm	2,116 mm	93004.01	Show
93007.01	150 mm	7	150 mm	948 mm	2,147 mm	93007.01	Show
93010.01	150 mm	10	150 mm	951 mm	2,822 mm	93010.01	Show
93015.01	200 mm	15	200 mm	1,350 mm	3,560 mm	93015.01	Show
93025.01	200 mm	25	200 mm	1,350 mm	4,760 mm	93025.01	Show
93030.01	250 mm	30	250 mm	1,350 mm	4,860 mm	93030.01	Show
93035.01	250 mm	35	250 mm	1,500 mm	6,480 mm	93035.01	Show
93040.01	250 mm	40	250 mm	1,600 mm	6,680 mm	93040.01	Show
93050.01	250 mm	50	250 mm	1,800 mm	6,680 mm	93050.01	Show

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.21	100 mm	2	100 mm	674 mm	1,736 mm	93002.21	Show
93003.21	100 mm	3	100 mm	674 mm	1,736 mm	93003.21	Show
93004.21	100 mm	4	100 mm	680 mm	2,116 mm	93004.21	Show
93007.21	150 mm	7	150 mm	948 mm	2,147 mm	93007.21	Show
93010.21	150 mm	10	150 mm	951 mm	2,822 mm	93010.21	Show

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.11	100 mm	2	100 mm	674 mm	1,736 mm	93002.11	Show
93003.11	100 mm	3	100 mm	674 mm	1,736 mm	93003.11	Show
93004.11	100 mm	4	100 mm	680 mm	2,116 mm	93004.11	Show
93007.11	150 mm	7	150 mm	948 mm	2,147 mm	93007.11	Show
93010.11	150 mm	10	150 mm	951 mm	2,822 mm	93010.11	Show

	Inlet nominal size (DN)	Nominal size (NS)	Outlet nominal size (DN)	Set-up area, width	Set-up area, length	Item no.
93002.31	100 mm	2	100 mm	674 mm	1,736 mm	93002.31	Show
93003.31	100 mm	3	100 mm	674 mm	1,736 mm	93003.31	Show
93004.31	100 mm	4	100 mm	680 mm	2,116 mm	93004.31	Show
93007.31	150 mm	7	150 mm	948 mm	2,147 mm	93007.31	Show
93010.31	150 mm	10	150 mm	951 mm	2,822 mm	93010.31	Show
93015-01-L	200 mm	15	200 mm	1,680 mm	3,530 mm	93015-01-L	Show
93015-01-R	200 mm	15	200 mm	1,680 mm	3,530 mm	93015-01-R	Show
93020-01-L	200 mm	20	200 mm	1,730 mm	3,530 mm	93020-01-L	Show
93020-01-R	200 mm	20	200 mm	1,730 mm	3,530 mm	93020-01-R	Show

Not found the right product?

In addition to our standard grease separators we also develop individual solutions on request for special requirements in terms of form, function and dimensioning.

Customised solutions
