Grease separator EasyClean free

NS 2, Standard

93002.01
PDF product data sheet

KESSEL Grease separator EasyClean free, nominal size 2,00, free-standing installation, type of disposal manual with suction hose, locking Quick-release closure, no, no, no, total volume 600 l

  • Direction of flow can be changed thanks to self-sealing interchangeable hubs (NS 2- NS 10)
  • Can be retrofitted up to Auto Mix & Pump
  • Low-maintenance operation
Item no. 93002.01
GTIN 4026092060872
Price group 60

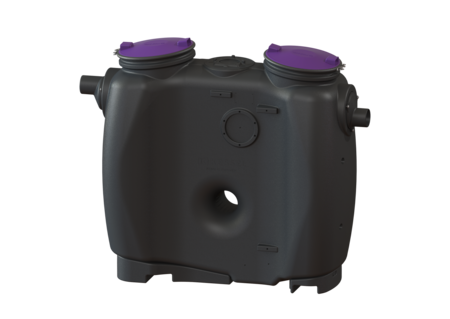

Grease separator EasyClean free NS 2, Standard
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a tapered base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 2,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) ATEX: no Dimensions Net weight: 80 kg Gross weight: 95 kg Set-up area, length: 1736 mm Set-up area, width: 674 mm Set-up area, height: 1434 mm Required access area, length: 1500 mm Required access area, width: 674 mm Required access area, height: 1434 mm Packaging dimension: length: 1900 mm Packaging dimension: width: 1050 mm Packaging dimension: height: 1520 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 985 mm Distance pipe bottom inlet to tank bottom: 1055 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: violet Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 400 l Total volume: 600 l Contents of sludge trap: 200 l Storage quantity of grease: 100 l Control Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
915870 Sampling system DN 100/150, Vertical outlet 915870 Show
915871 Sampling system DN 100/150, Horizontal outlet 915871 Show
917413 Access panel for mounting on-wall 917413 Show
917414 Access panel for in-wall installation 917414 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
680128 Seal DN 200 680128 Show
680164 Screw 10x3, A2 680164 Show
680217 Seal for cover 420 mm, up to 03/2004 680217 Show
680325 Clamp fastener for cover 420 mm, up to 03/2004 680325 Show
680326 Cover d: 420 mm, up to 03/2004 680326 Show
680435 Inlet socket for grease separator NS 2-4 680435 Show
680437 Outlet socket for grease separator NS 2-4 680437 Show
680439 Inlet/outlet structure for grease separator NS 2-10 680439 Show
916904 Cover d: 420 mm, from 04/2004 916904 Show
917004 Clamp fastener for cover 420 mm, up to 04/2004 917004 Show
917204 Seal for cover d: 420 mm 917204 Show
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241796
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Nominal size (NS) (nenngroesse): 2
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
  • Outlet nominal size (DN) (auslauf_nennweite_dn): 100  mm
  • Set-up area, width (aufstellflaeche_breite): 674  mm
  • Set-up area, length (aufstellflaeche_laenge): 1,736  mm
