Grease separator EasyClean free

NS 50, Standard

PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Standard, nominal size 50, Set-up area, width 1800 mm, free-standing installation, no, type of disposal manual with suction hose, tightness odour-tight, locking Quick-release closure

  • Can be retrofitted up to Auto Mix & Pump
  • Low-maintenance operation
Item no. 93050.01
GTIN 4026092103791
Price group 60

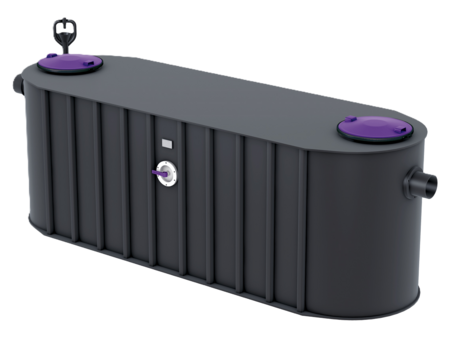

Grease separator EasyClean free NS 50, Standard
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 50 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Set-up area, length: 6680 mm Set-up area, width: 1800 mm Set-up area, height: 1882 mm Required access area, length: 6200 mm Required access area, width: 1800 mm Required access area, height: 1882 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1350 mm Distance pipe bottom inlet to tank bottom: 1420 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 6200 l Total volume: 11200 l Contents of sludge trap: 5000 l Storage quantity of grease: 2240 l Control Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
915884 Sampling system DN 250, horizontal 915884 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
Declaration of Performance
Declaration of Conformity
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Nominal size (NS) (nenngroesse): 50
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 250  mm
  • Outlet nominal size (DN) (auslauf_nennweite_dn): 250  mm
  • Set-up area, width (aufstellflaeche_breite): 1,800  mm
  • Set-up area, length (aufstellflaeche_laenge): 6,680  mm
