Grease separator EasyClean free

NS 35, Standard

PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Standard, nominal size 35, Set-up area, width 1500 mm, free-standing installation, no, type of disposal manual with suction hose, tightness odour-tight, locking Quick-release closure

  • Can be retrofitted up to Auto Mix & Pump
  • Low-maintenance operation
Item no. 93035.01
GTIN 4026092103678
Price group 60

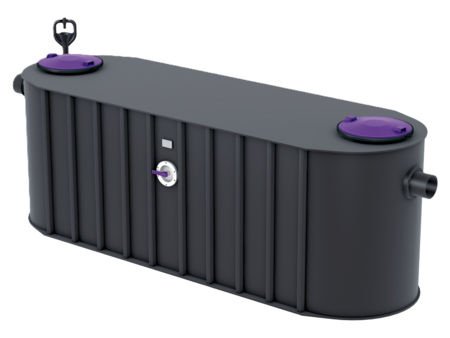

Grease separator EasyClean free NS 35, Standard
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 35 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 615 kg Gross weight: 615 kg Set-up area, length: 6480 mm Set-up area, width: 1500 mm Set-up area, height: 1662 mm Required access area, length: 6000 mm Required access area, width: 1500 mm Required access area, height: 1662 mm Packaging dimension: length: 6000 mm Packaging dimension: width: 1500 mm Packaging dimension: height: 1662 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1130 mm Distance pipe bottom inlet to tank bottom: 1200 mm Outlet nominal size (OD): 250 mm Outlet nominal size (DN): 250 mm Inlet nominal size (OD): 250 mm Inlet nominal size (DN): 250 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 4500 l Total volume: 8000 l Contents of sludge trap: 3500 l Storage quantity of grease: 1400 l Control Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
Sampling system DN 250, horizontal 915884 Show
'SonicControl' level sensing system 917821 Show
Cable extension 10 m, for SonicControl grease separator 917871 Show
Cable extension 20 m, for SonicControl grease separator 917872 Show
Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Nominal size (NS) (nenngroesse): 35
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 250  mm
  • Outlet nominal size (DN) (auslauf_nennweite_dn): 250  mm
  • Set-up area, width (aufstellflaeche_breite): 1,500  mm
  • Set-up area, length (aufstellflaeche_laenge): 6,480  mm
