Grease separator EasyClean ground
NS 4, Auto Mix & Pump, 1520-1700 mm, D
KESSEL Grease separator EasyClean ground, disposal Auto Mix & Pump, nominal size 4,00, load class D 400, underground installation, installation depth 1520 - 1700 mm, type of disposal automatic disposal and cleaning system, SPF 300 IP68
- Fully automated disposal and rinsing device
- Customisation possible through control unit
- Clean and odour-free disposal and cleaning
| Item no. | 93004/170D-PVS-TS |
|---|---|
| Price group | 60 |

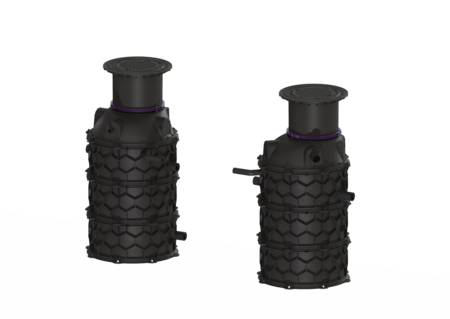

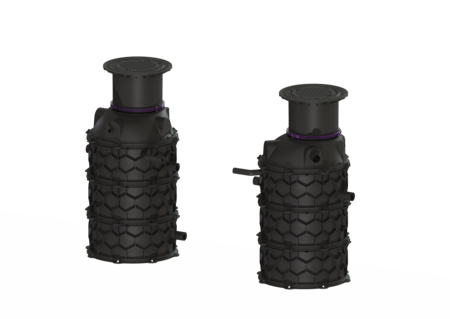

Grease separator EasyClean ground NS 4, Auto Mix & Pump, 1520-1700 mm, D
The separator for greasy wastewater for underground installation consists of a grease separator and an engineering chamber. The two-piece system made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an integrated sampling device. Access for cleaning and maintenance work is provided by inspection openings, with polymer upper sections for continuously adjustable height and level compensation. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior submersible pump which is installed in a separate engineering chamber and can be disconnected from the tank by a shut-off valve. The fully automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system through a potential-free contact. The control unit with 10 m long cable is installed in the engineering chamber in the factory. Cleaning and disposal can be started remotely using the remote control. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. Observance of the Drinking Water Hygiene Directive can be guaranteed through the fully automatic rinsing of the drinking water pipes. The refill inlet and solenoid valves must be installed in a dry room on site. The connections between the grease separator and the engineering chamber as well as the reserve conduits and the connections must be made on site. (see connection set 917421). A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Note on installation depth: Ground installation frost-free depth 1700 mm Shut-off valve: yes Disposal variant: Auto Mix & Pump Shredder-Mix-System: yes Sludge bucket: no Nominal size (NS): 4,00 SonicControl: no Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: automatic disposal and cleaning system Water supply: 2 solenoid valves 1" Sampling device: Type NBG Load-bearing capacity (DIN 19901): E4 General characteristics Standard: EN 1825: 2004 Installation situation: underground installation Dimensions Net weight: 490 kg Gross weight: 510 kg Groundwater resistant from lower edge of base section: 3000 mm Diameter: 659 mm Max. length: 2790 mm Installation depth: 1520 - 1700 mm Required access area, length: 1425 mm Required access area, width: 1235 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1095 mm Distance pipe bottom inlet to tank bottom: 1205 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: locked Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 370 l Total volume: 770 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Pumping device Pump: SPF 300 IP68 Number of pumps: 1 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Protection class: I Insulation class: F Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: no Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): Fuse protection through control unit 400 V
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Connect Pro module LTE f. control unit w. Connect Pro interface | 72300 | Show |
 | Sampling chamber LW 400, DN 100/150, class D | 915880D | Show |
 | Direct disposal Disposal connection, right | 917419.00 | Show |
 | Direct disposal Disposal connection, left | 917419.50 | Show |
 | Disposal chamber LW 400, underground separators, A/B | 917422B | Show |
 | Disposal chamber LW 400, underground separators, D | 917422D | Show |
 | Layer thickness measuring device SonicControl, for grease separators | 917821 | Show |
 | SonicControl cable gland Underground separator installation set | 917823 | Show |
 | Cable extension 10 m, for SonicControl grease separator | 917871 | Show |
| Cable extension 20 m, for SonicControl grease separator | 917872 | Show |
| Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- Disposal variant (entsorgungsvariante):
Auto Mix & Pump
- Control unit (schaltgeraet):
yes
- Disposal system (entsorgungseinrichtung):
Disposal pump
- Installation situation (einbausituation):
underground installation
- Shredder-Mix-System (schredder_mix_system):
yes
- Nominal size (NS) (nenngroesse): 4
- Load class (belastungsklasse): D 400 (EN 124)
- Installation depth (einbautiefe): 1,520 mm
