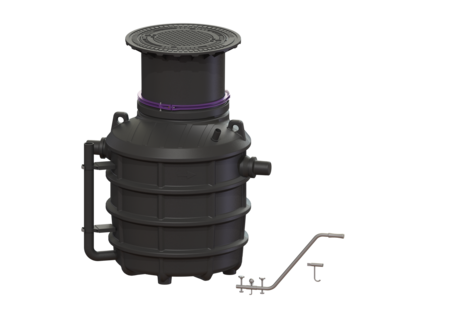

Grease separator EasyClean ground

NS 2, Direct, 550-950 mm, A/B, right

93002.80B-DR
93002.80B-DR
Back to table of variants PDF product data sheet

KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 2, load class B 125, underground installation, installation depth 550 - 900 mm, type of disposal manual, flow direction right

  • Low odour and clean disposal
  • Defined disposal point
  • Complete emptying of the separator
Item no. 93002.80B-DR
GTIN 4026092095065
Price group 60

    Grease separator EasyClean ground NS 2, Direct, 550-950 mm, A/B, right
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. A direct disposal pipe socket is available for odour-reduced manual disposal. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 800 mm Direction of flow: right Disposal variant: Direct Nominal size (NS): 2 Disposal system: Disposal pipe Type of disposal: manual Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 120 kg Gross weight: 127 kg Groundwater resistant from lower edge of base section: 500 mm Diameter: 648 mm Installation depth: 550 - 900 mm Length: 1380 mm Width: 1106 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 1795 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 790 mm Distance pipe bottom inlet to tank bottom: 860 mm Outlet nominal size (DN): 100 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 370 l Contents of sludge trap: 200 l Storage quantity of grease: 120 l Storage quantity of light liquid: 120 l
      Title Item no.
      Title Item no.
      Title Item no.
    72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
    915880B Sampling chamber LW 400, DN 100/150, class B 915880B Show
    915882B Sampling chamber DN 150, Class B 915882B Show
    917419.00 Direct disposal Disposal connection, right 917419.00 Show
    917419.50 Direct disposal Disposal connection, left 917419.50 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917823 SonicControl cable gland Underground separator installation set 917823 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    860116 Seal for upper sections d: 600 mm 860116 Show
    860119 Cover plate Class B, grey cast iron, with seal 860119 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Disposal system (entsorgungseinrichtung): Disposal pipe
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 2
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 550  mm
    • Gross weight (gewicht_brutto): 127  kg
    • Direction of flow (fliessrichtung): right
