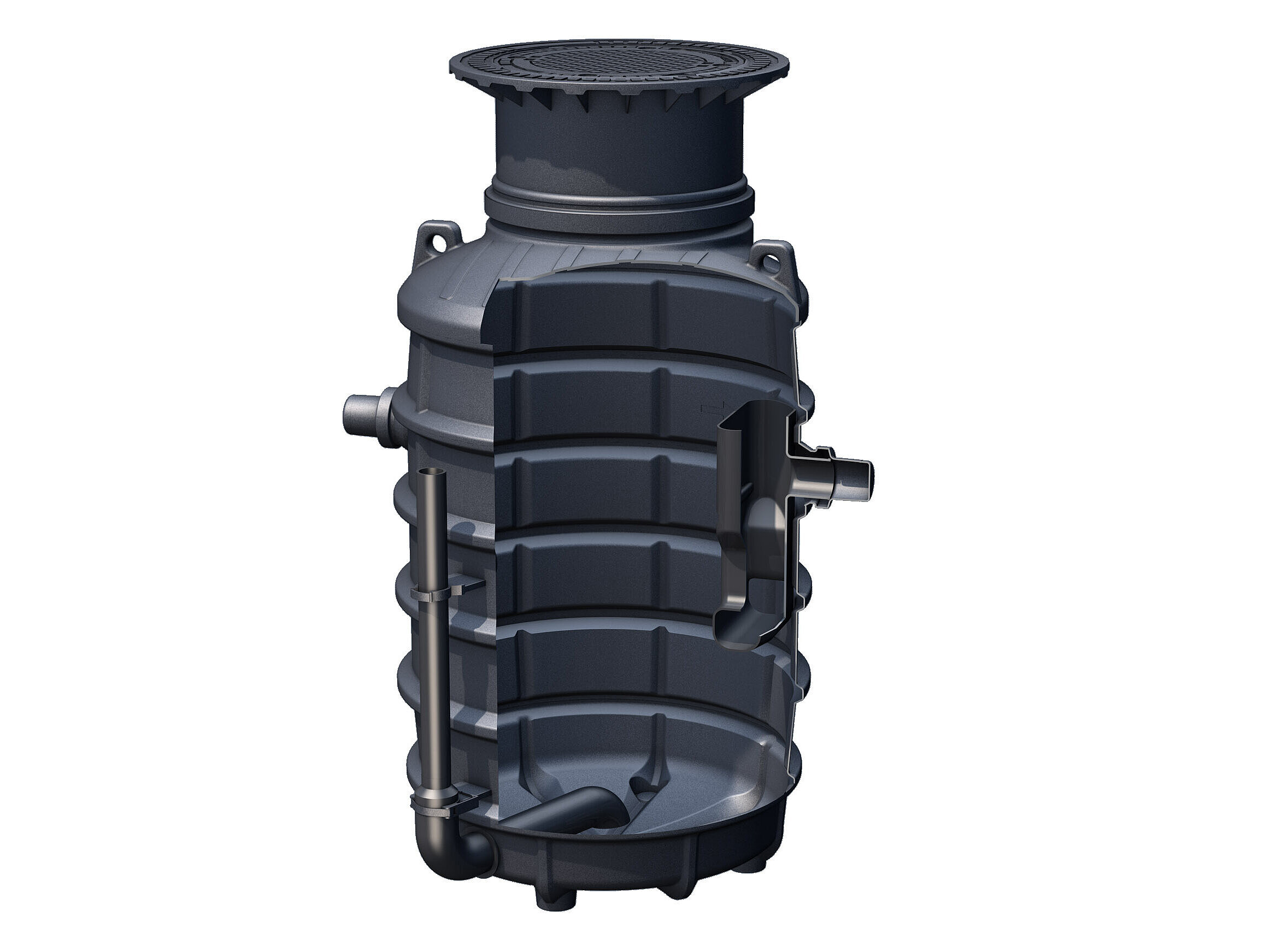

EasyClean ground Direct grease separator

The uncomplicated solution for underground installation.

The EasyClean groundDirect grease separator is equipped with a direct disposal pipe, to which a permanently installed disposal pipe can be connected. The contents of the tank can be very easily emptied via this pipe by the disposal vehicle’s pump, without having to open the tank. It is preferably cleaned and rinsed with hot water through the maintenance openings.

The EasyClean ground Direct grease separator is available for load classes A/B and D as well as in nominal sizes NS 1 to NS 4, which are sufficient for most smaller restaurants and hotels. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages Article overview

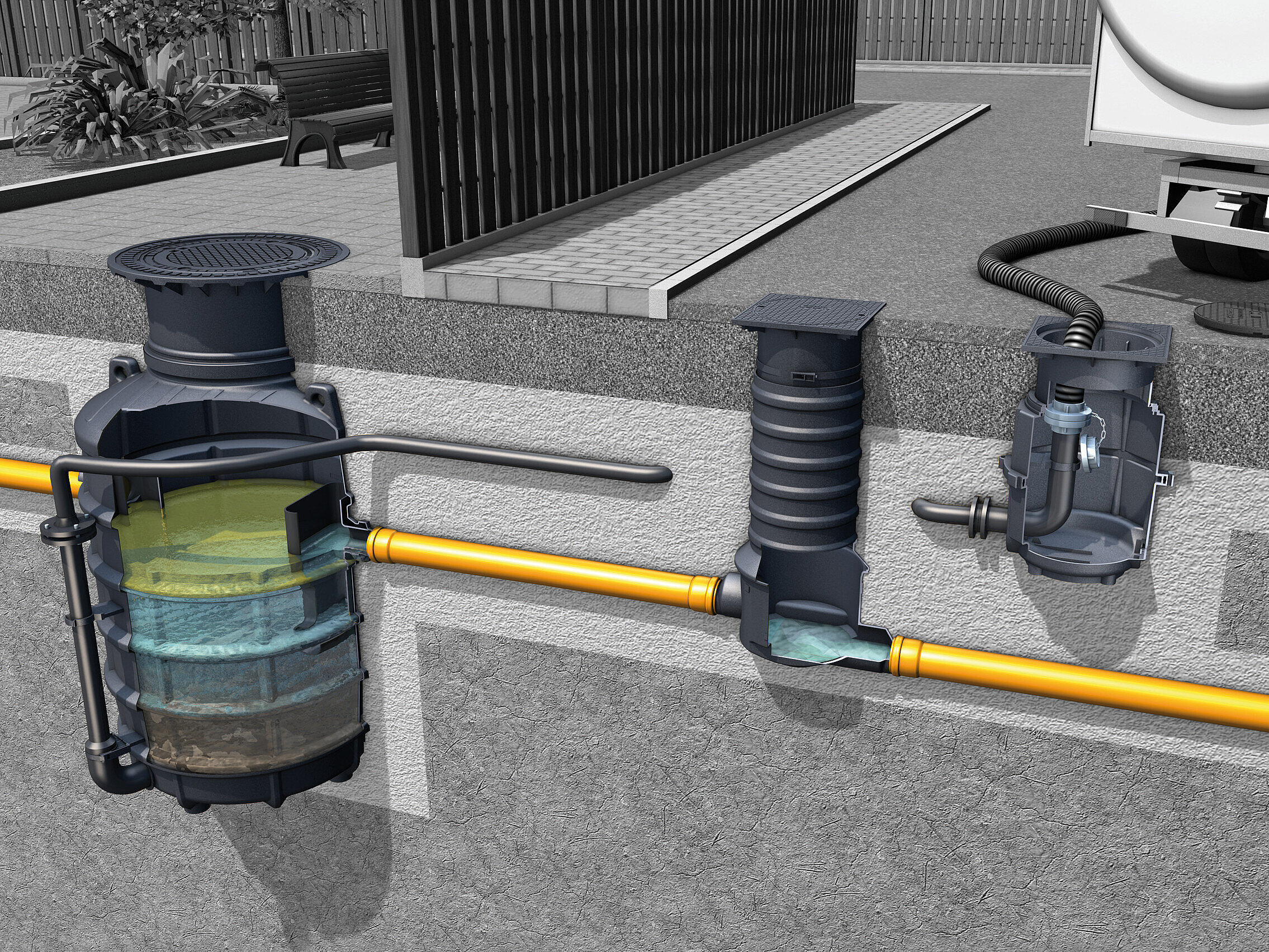

Installation diagram of EasyClean ground Direct grease separator

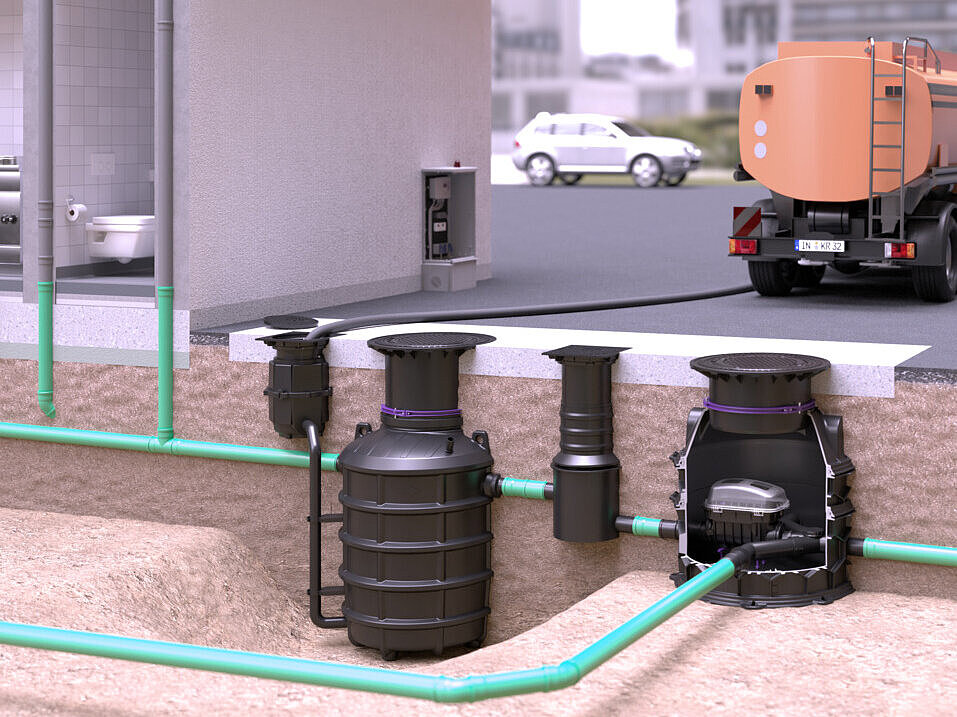

Installation diagram of EasyClean ground Direct grease separator with Pumpfix F in the underground engineering chamber

The EasyClean ground Direct offers the following advantage:

Direct disposal: Disposal via the direct disposal pipe – without opening the tank.

The KESSEL range includes even more grease separators with further advantages.

Variable upper section for easy installation of separators

Variable installation depths

Individual installation depths, continuous adaptation to the ground level and compensation for the ground covering settling are possible thanks to the telescopic polymer upper sections.

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

Polymer grease are durable and corrosion-free.

100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment
