Grease separator EasyClean ground
NS 4, Direct, 800-1200 mm, A/B, left
KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 4,00, load class B 125, underground installation, installation depth 800 - 1200 mm, type of disposal manual, flow direction left
- Low odour and clean disposal
- Defined disposal point
- Complete emptying of the separator
Item no. | 93004.120B-DL |
---|---|
GTIN | 4026092095034 |
Price group | 60 |

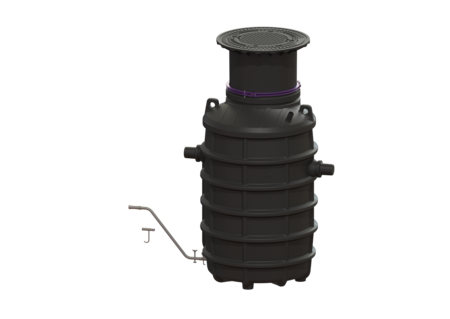

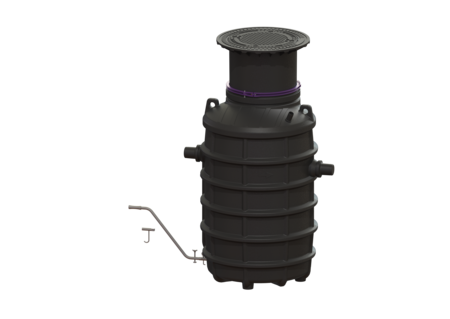

Grease separator EasyClean ground NS 4, Direct, 800-1200 mm, A/B, left
The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. A direct disposal pipe socket is available for odour-reduced manual disposal. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 1200 mm Direction of flow: left Disposal variant: Direct Nominal size (NS): 4,00 Disposal system: Disposal pipe Type of disposal: manual Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 130 kg Gross weight: 137 kg Groundwater resistant from lower edge of base section: 500 mm Diameter: 648 mm Installation depth: 800 - 1200 mm Length: 1380 mm Width: 1106 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 2628 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1040 mm Distance pipe bottom inlet to tank bottom: 1110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (DN): 100 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 370 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Storage quantity of light liquid: 160 l
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Connect Pro module LTE f. control unit w. Connect Pro interface | 72300 | Show | |
Sampling chamber LW 1000, DN 100, Class B | 9151010B | Show | |
Sampling chamber LW 400, DN 100/150, class B | 915880B | Show | |
Sampling chamber DN 150, Class B | 915882B | Show | |
Direct disposal Disposal connection, right | 917419.00 | Show | |
Direct disposal Disposal connection, left | 917419.50 | Show | |
Disposal chamber LW 400, underground separators, A/B | 917422B | Show | |
Disposal chamber LW 400, underground separators, D | 917422D | Show | |
Layer thickness measuring device SonicControl, for grease separators | 917821 | Show | |
SonicControl cable gland Underground separator installation set | 917823 | Show | |
Cable extension 10 m, for SonicControl grease separator | 917871 | Show | |
Cable extension 20 m, for SonicControl grease separator | 917872 | Show | |
Cable extension 30 m, for SonicControl grease separator | 917873 | Show |
Title | Item no. | ||
---|---|---|---|
Clamping ring for upper sections d: 600 mm | 680276 | Show | |
Removal key for cover plates | 680278 | Show | |
Seal for cover plate, locked | 680323 | Show | |
Upper section d: 630 mm, surface water resistant | 680324 | Show | |
Seal for upper sections d: 600 mm | 860116 | Show | |
Cover plate Class B, grey cast iron, with seal | 860119 | Show | |
Removal tool for 'Goliath' chamber cover | 917112 | Show |
Manuals | |
---|---|
CAD Data | |
Declaration of Performance | |
Declaration of Conformity |
- Material (material): PE
- Disposal system (entsorgungseinrichtung): Disposal pipe
- Installation situation (einbausituation): underground installation
- Nominal size (NS) (nenngroesse): 4
- Load class (belastungsklasse): B 125 (EN 124)
- Installation depth (einbautiefe): 800 mm
- Gross weight (gewicht_brutto): 137 kg
- Direction of flow (fliessrichtung): left
