Pumping station Aquapump XXL

Tronic, GTF 5200-S1

8743043
8743043
PDF product data sheet

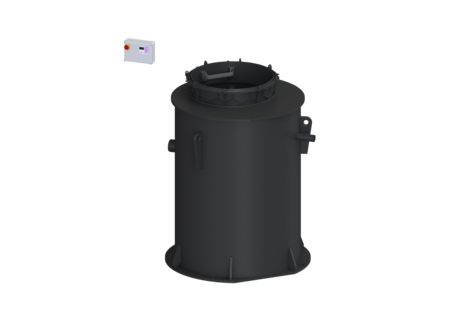

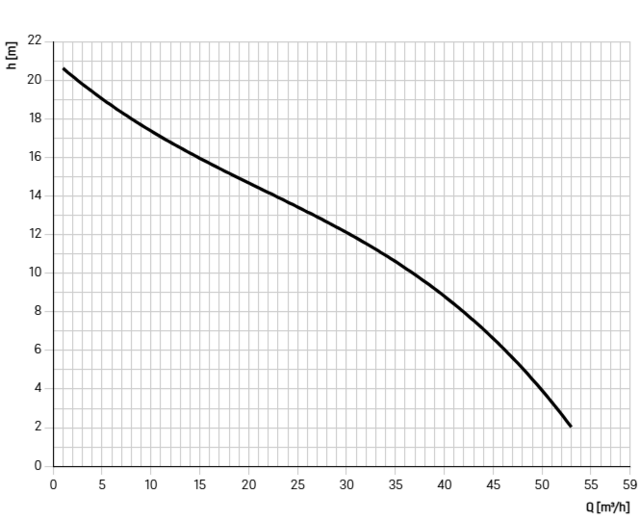

KESSEL Pumping station Aquapump XXL, Tronic, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), height 2440 mm, pump control by Control unit, with a submersible GTF 5200 pump

  • Maximum safety
  • Flexible installation
  • Also handles large quantities of wastewater without sewage
Item no. 8743043
GTIN 4026092078112
Price group 60

Pumping station Aquapump XXL Tronic, GTF 5200-S1
The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Note on installation depth: in combination with a chamber module Type of system: Single unit Shut-off valve: Shut-off valve made of cast iron Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: Twin walled re-enforced pipe chamber General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Tronic Dimensions Net weight: 609,5 kg Gross weight: 677,5 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1880 mm Width: 1880 mm Height: 2440 mm Packaging dimension: length: 3200 mm Packaging dimension: width: 1800 mm Packaging dimension: height: 1760 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Distance from centre of outlet pipe to tank bottom: 1735 mm Distance pipe bottom inlet to tank bottom: 1320 mm Distance from centre of inlet pipe to tank bottom: 1400 mm Distance from inlet pipe invert to top of tank: 1090 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1600 mm Clear width of entry (LW): 1000 mm Pumping volume: 900 l Pumping device Pump: GTF 5200 Number of pumps: 1 Weight, pump: 56 kg Connection type: Direct connection Rated current: 8,7 A Protection class: I Insulation class: H Cos phi - power factor: 0,85 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 52,8 m³/h Max. pumping height: 21 m Speed: 2835 U/min Power P1: 5,2 kW Power P2: 4,4 kW Operating mode: S1 Type of pump connection cable: H07RN8-F PLU 10G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Plus Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
