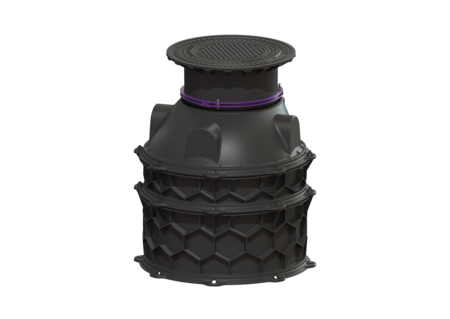

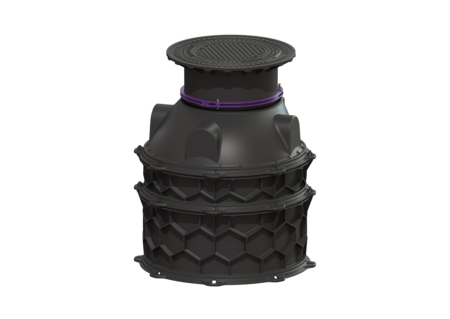

Chamber module LW 1000 floor slab

Access LW 600, 1880-2129 mm, Class D

8740037
PDF product data sheet

KESSEL Chamber module LW 1000 floor slab, PE-HD, underground installation, installation depth 1880 - 2129 mm, clear width of entry (LW) 600 mm, load class D 400

  • For modular assembly with simple connection segments and intermediate sections 250 and 500 mm high
  • Innovative honeycomb structure
  • Installation in groundwater up to 3000 mm
Item no. 8740037
GTIN 4026092065525
Price group 60

    Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D
    The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover. Variant Note on installation depth: A load distribution slab must be installed on site for load class D General characteristics Colour: black Material: PE-HD Standard: EN 13598-2 Installation situation: underground installation Delivery state: Partly for on-site assembly (access steps have been pre-mounted in the factory) Approval: Z-42.1-527 ATEX: no Dimensions Net weight: 162,5 kg Gross weight: 179 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 1880 - 2129 mm Type of height adjustability: vertically adjustable upper section Length: 1200 mm Width: 1200 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Tank/drain body Inlet max. scoring (DN): 150 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron Colour of cover: black Width of cover: 659 mm Height of cover: 122 mm Length of cover: 659 mm Surface: Grey iron Locking: locked Load class: D 400 (EN 124) Tightness: surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680125 Seal for intermediate section 680125 Show
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680323 Seal for cover plate, locked 680323 Show
    680370 Intermediate section 250 mm, for chamber module LW 1000 680370 Show
    680371 Intermediate section 500 mm, for chamber module LW 1000 680371 Show
    680373 Connecting bolt set Set of 10 680373 Show
    680374 Seal for chamber module 680374 Show
    680376 Access steps for chamber module 680376 Show
    680431 Chamber taper LW 600 chamber module access 680431 Show
    680569 Upper section d: 600 mm 680569 Show
    850116 Seal for pipe penetration, DN 70 850116 Show
    850117 Seal for pipe penetration, DN 100 850117 Show
    860136 Cover plate 860136 Show
    • Installation situation (einbausituation): underground installation
    • External monitoring (fremdueberwachung): SKZ
    • Type of cover (abdeckungsart): Round cover plate
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 1,880  mm
    • Gross weight (gewicht_brutto): 179  kg
    • Surface (oberflaeche): Grey iron
