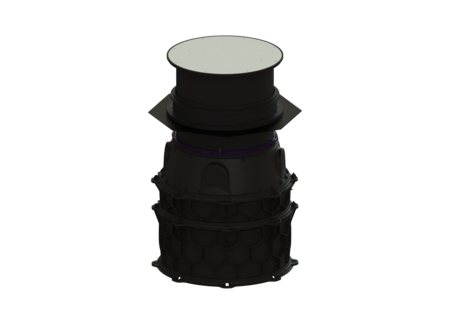

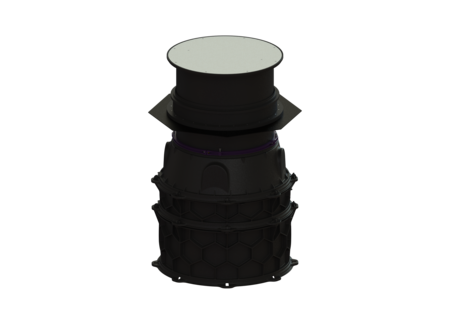

Chamber module LW 1000 floor slab

Access LW 800, 1388-1637 mm, K 3, wa.co.

8740225
PDF product data sheet

KESSEL Chamber module LW 1000 floor slab, PE-HD, floor slab installation, installation depth 1388 - 1637 mm, clear width of entry (LW) 800 mm, load class K 3

  • For modular assembly with simple connection segments and intermediate sections 250 and 500 mm high
  • Innovative honeycomb structure
  • Installation in groundwater up to 3000 mm
Item no. 8740225
GTIN 4026092093238
Price group 60

    Chamber module LW 1000 floor slab Access LW 800, 1388-1637 mm, K 3, wa.co.
    The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover. General characteristics Colour: black Material: PE-HD Standard: EN 13598-2 Installation situation: floor slab installation Delivery state: Partly for on-site assembly (access steps have been pre-mounted in the factory) Approval: Z-42.1-527 Dimensions Net weight: 145,29 kg Gross weight: 165,35 kg Groundwater resistant from lower edge of base section: 3000 mm Diameter: 960 mm Installation depth: 1388 - 1637 mm Type of height adjustability: vertically adjustable upper section Length: 1200 mm Width: 1200 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2700 mm Tank/drain body Inlet max. scoring (DN): 150 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Coverage features Type of cover: Round cover plate Cover material: Stainless steel Height of cover: 19 mm Surface: anti-slip Locking: screwed Load class: K 3 (EN 1253-1) Tightness: surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680125 Seal for intermediate section 680125 Show
    680370 Intermediate section 250 mm, for chamber module LW 1000 680370 Show
    680371 Intermediate section 500 mm, for chamber module LW 1000 680371 Show
    680373 Connecting bolt set Set of 10 680373 Show
    680376 Access steps for chamber module 680376 Show
    680430 Chamber taper LW 800 chamber module access 680430 Show
    850116 Seal for pipe penetration, DN 70 850116 Show
    850117 Seal for pipe penetration, DN 100 850117 Show
    • Cover material (abdeckung_material): Stainless steel
    • Installation situation (einbausituation): floor slab installation
    • External monitoring (fremdueberwachung): SKZ
    • Type of cover (abdeckungsart): Round cover plate
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Installation depth (einbautiefe): 1,388  mm
    • Gross weight (gewicht_brutto): 165.3  kg
    • Surface (oberflaeche): anti-slip
