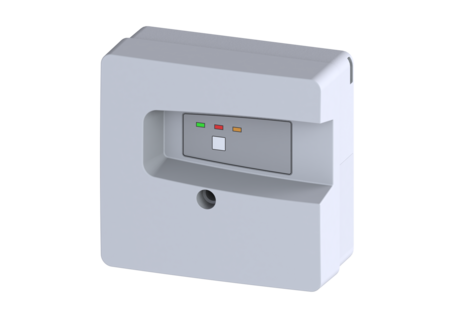

Basic alarm unit
with optical probe 10 m


Basic alarm unit for non-conductive and conductive liquids, monitoring and signalling of flooding caused by defects in pipes, basement drains or washing machines. With optical and acoustic alarm signal, integrated battery back-up for alarm, and log book (diary function) for reading out past operating states, connection option for remote signal generator (art. no. 20162) or can be retrofitted with potential-free contact (art. no. 80074). Including splash guard set for optical probe. Cable extendable up to 30 m.
Item no. | 20224 |
---|---|
GTIN | 4026092096192 |
Price group | 20 |
Basic alarm unit with optical probe 10 m
Basic alarm unit for non-conductive and conductive liquids, monitoring and signalling of flooding caused by defects in pipes, basement drains or washing machines. With optical and acoustic alarm signal, integrated battery back-up for alarm, and log book (diary function) for reading out past operating states, connection option for remote signal generator (art. no. 20162) or can be retrofitted with potential-free contact (art. no. 80074). Including splash guard set for optical probe. Cable extendable up to 30 m. General characteristics Cable length: 10 m Dimensions Net weight: 1,5 kg Gross weight: 2,1 kg Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 250 mm Pumping device Connection type: Schuko (earthed contact) 2-pin Control Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Potential-free contact: optional Log book function: yes Battery buffering: yes
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data |
---|
