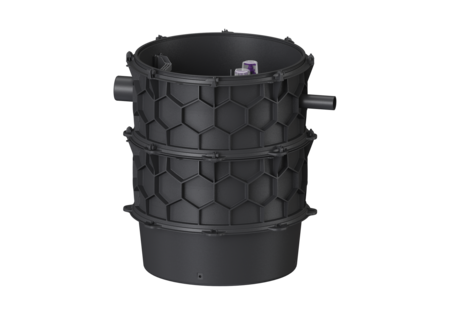

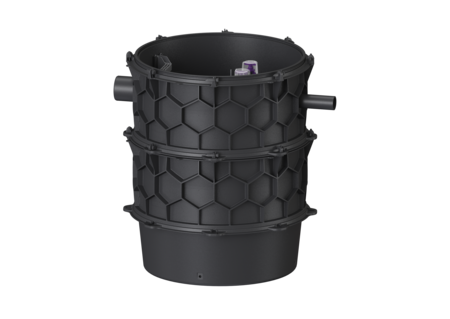

Pumping station Aquapump XL

Duo, GTF 1400-S1

8743034
8743034
PDF product data sheet

KESSEL Pumping station Aquapump XL, Duo, wastewater for wastewater with and without sewage, pump control by Control unit, with 2 submersible GTF 1400 pumps, operating mode S1

  • Maximum safety
  • Flexible installation
  • Also handles large quantities of wastewater
Item no. 8743034
GTIN 4026092078990
Price group 60

Pumping station Aquapump XL Duo, GTF 1400-S1
The pumping station is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank with universal connection options. Quick-release closures enable the integrated components to be removed easily. The KESSEL modular system provides different engineering chamber options as accessories for the further layout. Stainless steel pump removal chains available as accessory for each installation depth - Article number: 680528 = Length 2 m 680529 = Length 3 m 680530 = Length 4 m 680531 = Length 5 m Variant Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Access steps: yes Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with and without sewage Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Duo Dimensions Net weight: 193 kg Gross weight: 217 kg Groundwater resistant from lower edge of base section: 3000 mm Length: 1300 mm Width: 1300 mm Height: 1416 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 1550 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 340 l Pumping device Pump: GTF 1400 Number of pumps: 2 Weight, pump: 22 kg Connection type: Direct connection Rated current: 6,5 A Protection class: I Insulation class: H Cos phi - power factor: 0,99 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 31 m³/h Max. pumping height: 10,5 m Speed: 2900 U/min Power P1: 1,5 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Direct connection Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal
